Content Uniformity Sample Preparator

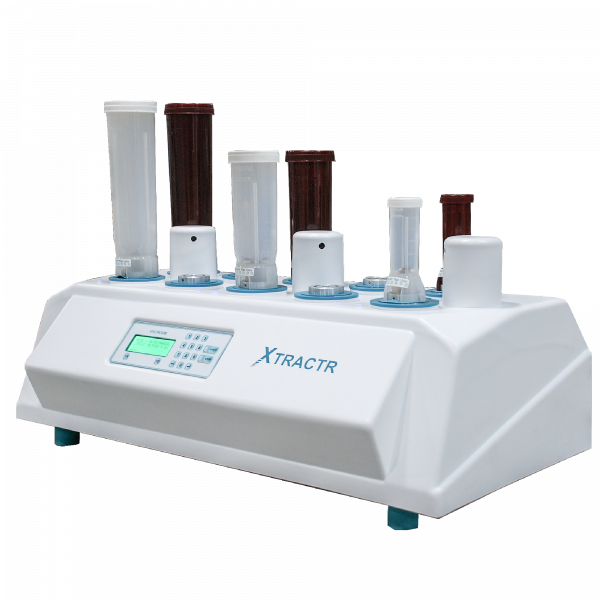

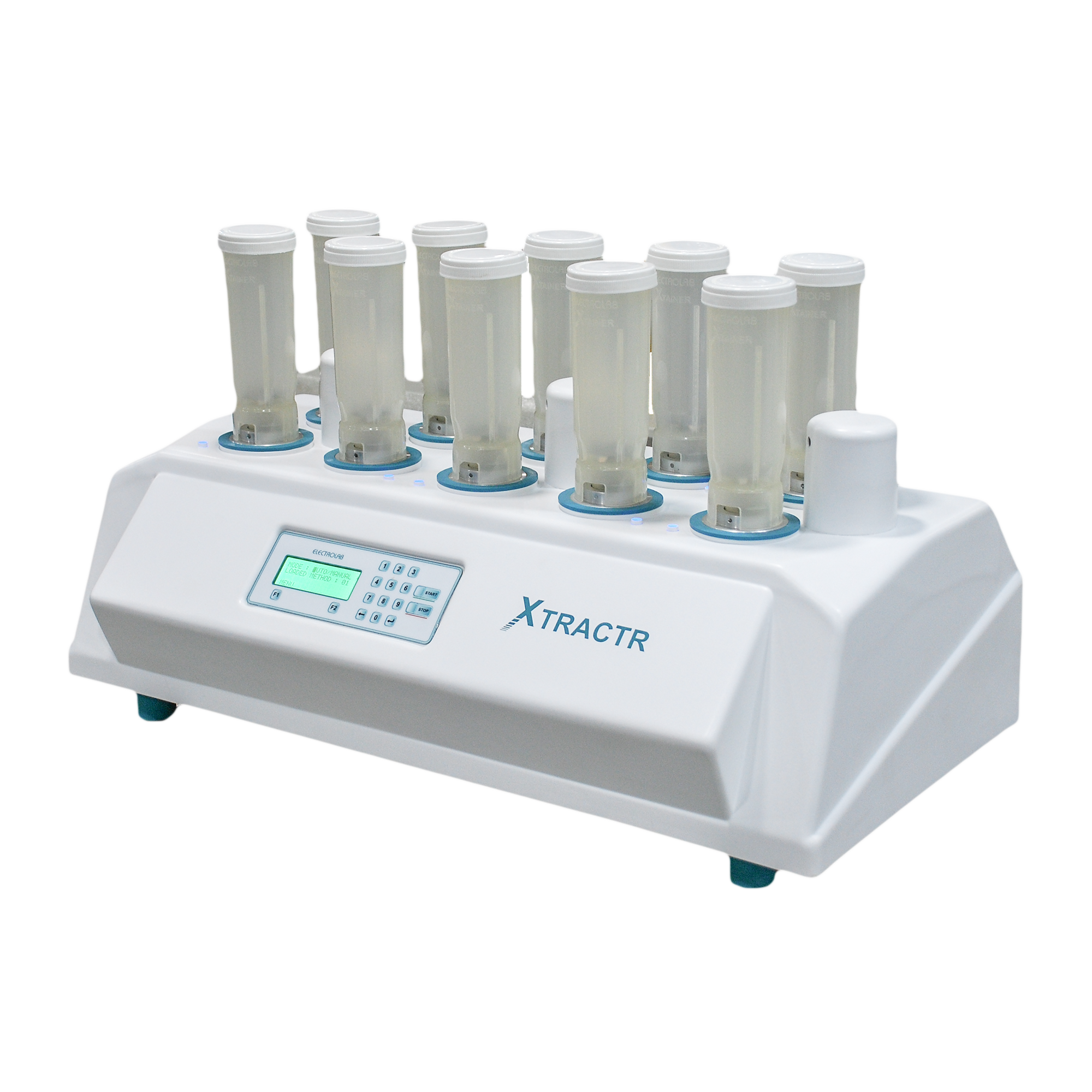

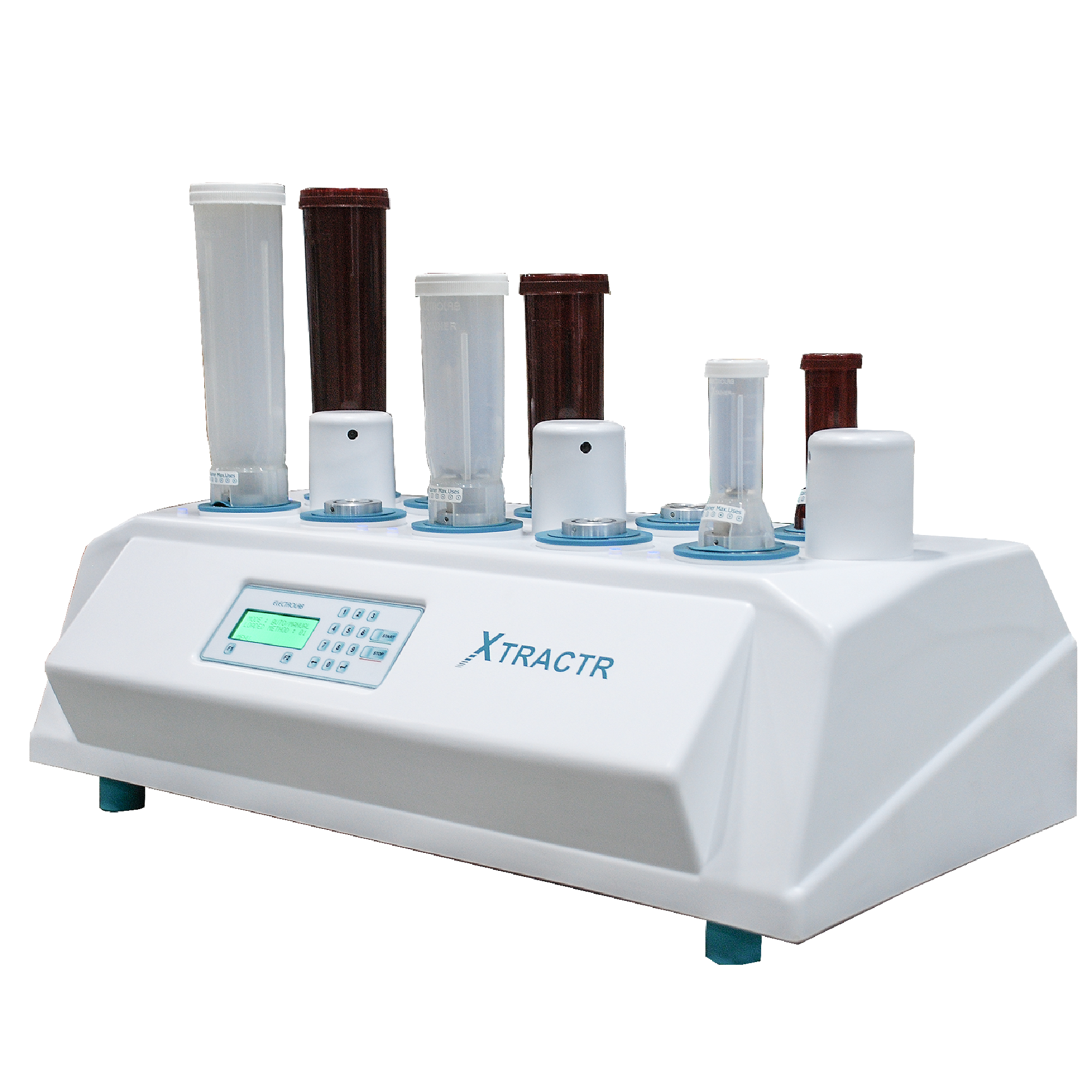

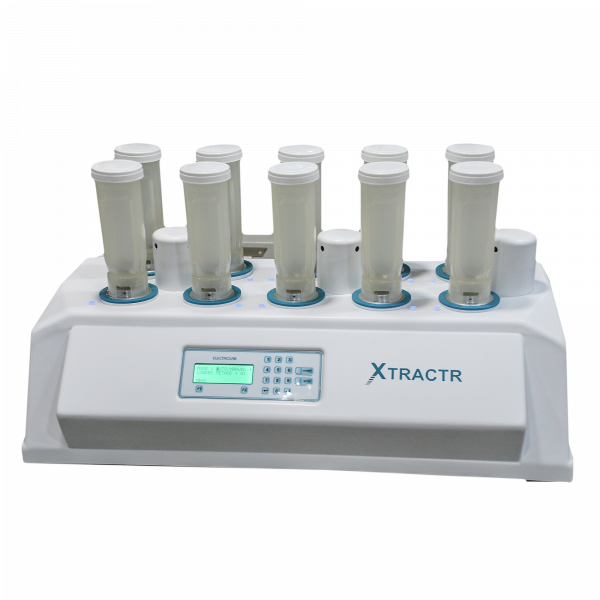

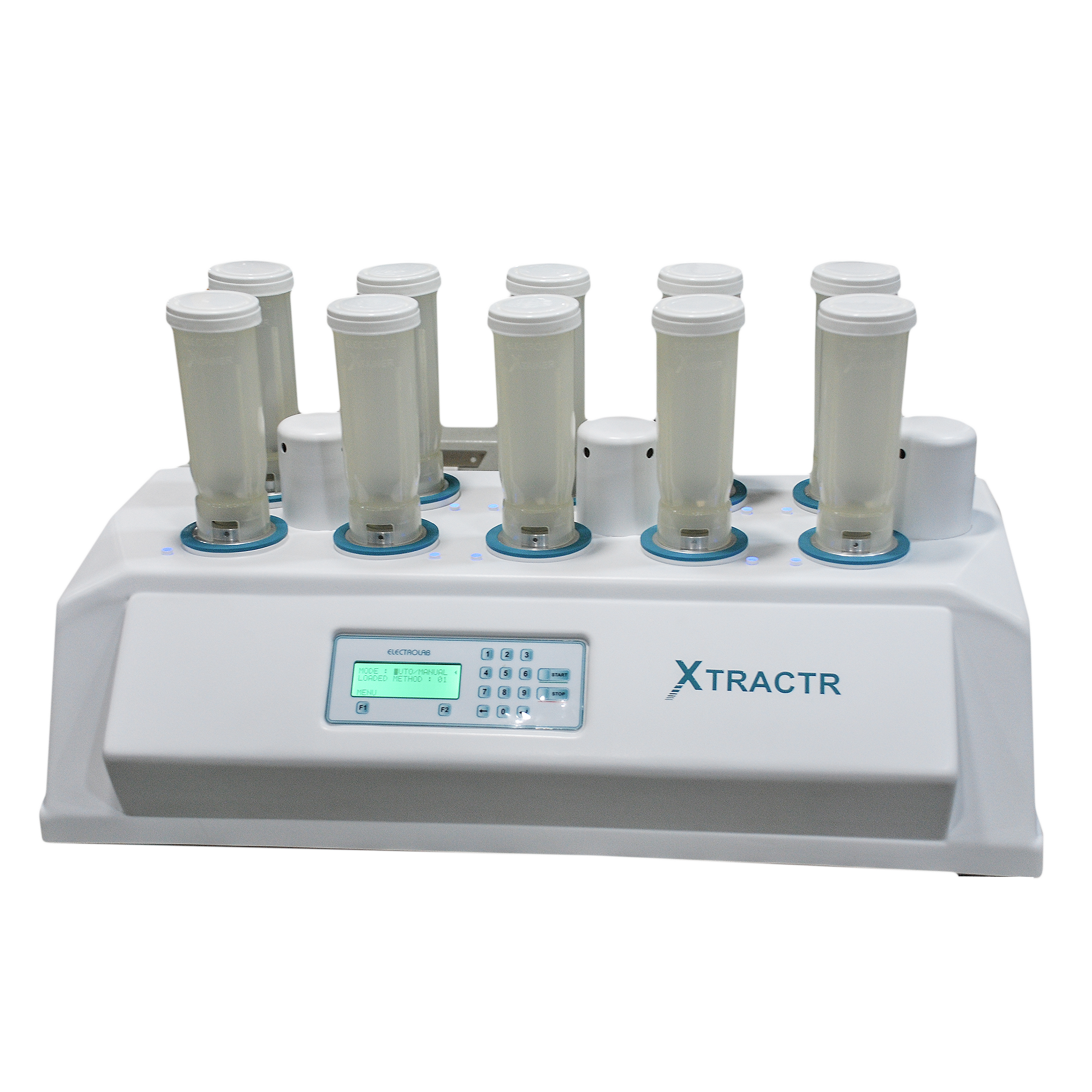

Content Uniformity Sample Preparator Xtractor-10
Features
Display
Report Printing
Station
Technology
Xtainer
Fast and efficient sample preparator for content uniformity, assay and impurity testing samples |
According to USP <905> chapter, Content Uniformity is required for dosage forms containing 25 mg or less of a drug substance |
10 station individually powered closed system |
Autodetection of Xtainer presence |
Variable Xtainer capacities to accommodate all dosage forms and label claims |
Amber Xtainers to protect light sensitive actives and inactives |
Threaded lids secure Xtainer contents |
Motor capable of reversing direction in case of stalling |
Audio visual alerts to indicate instrument status |
Non-contact temperature detection of individual Xtainers |
Motor auto shutdowns on reaching 'off' temperature and auto restarts on reaching 'on' temperature |
Simple and easy operable LCD display |
Sufficient method storage capacity |
Report printing via serial printer |
Specifications
Model | Xtractr-10 |
No. of stations | 10 |
Temp. range | 20 - 80°C |
Jar capacities | 50 mL, 250 mL and 500 mL |
Jar type | Clear, amber |
Blade type | Stainless steel |
Test duration | 10 sec . 99 min 59 sec |
Stirring range | 1500- 6000 rpm |
Display | Alphanumeric,2 0 x 4 LCD |
Storage | Last report |
Printer Interface | RS232 |
Dimensions (L X W X H) | 698 X 396 X 401 mm |
Weight | 15 kg |
Methods | 10 |
Ordering Information
Products | ||
Product Code | Description | Quantity |
534020 | Xtractr-10 (Body made of GMP Compliance) -230V | 1 |
533020 | Xtractr-10 (Body made of GMP Compliance) -110V | 1 |
Standard Accessories | ||
Part number | Description | Quantity |
0104A00540 | Xtractr 250 mL clear Xtainer with stainless steel blade | 1 |
Optional Accessories | ||
Part number | Description | Quantity |
0104A00537 | Xtractr 50 mL amber Xtainer with stainless steel blade | 1 |
0104A00545 | Xtractr 500 mL amber Xtainer with stainless steel blade(Set of 10) | 1 |
0104A00541 | Xtractr 250 mL amber Xtainer with stainless steel blade (Set of 10) | 1 |
0104A00536 | Xtractr 50 mL clear Xtainer with stainless steel blade (Set of 10) | 1 |
0104A00544 | Xtractr 500 mL clear Xtainer with stainless steel blade (Set of 10) | 1 |
0104A00044 | EDT Jar LID For Staggered Start - White (Set of 6) | 1 |
0104A00666 | RPM Validation Tool For Xtractr | 1 |
