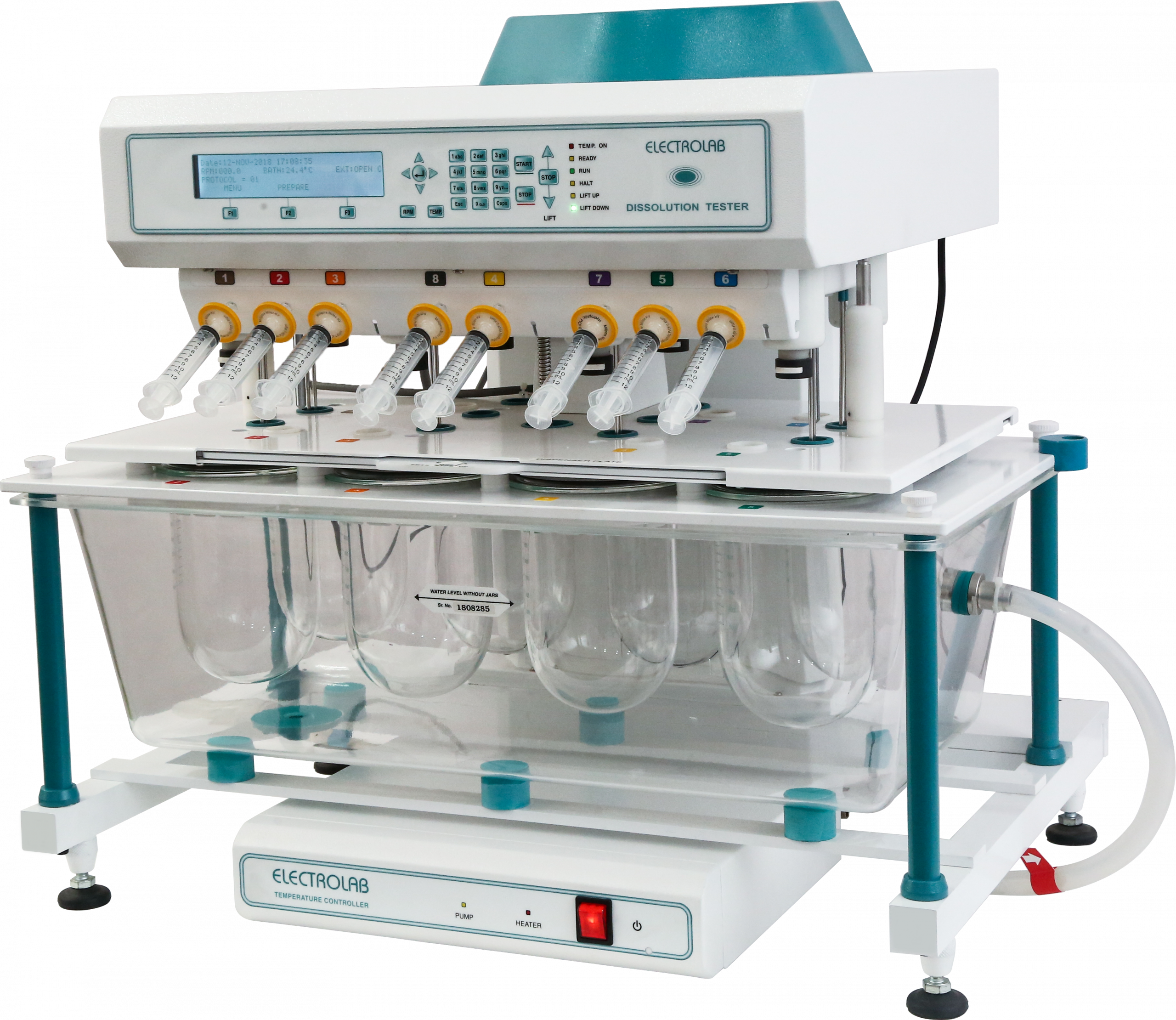

Dissolution Testers – USP 1/2/5/6
Features
![](https://www.electrolabgroup.com/wp-content/uploads/2021/02/21-CFR.png)
21 CFR
![](https://www.electrolabgroup.com/wp-content/uploads/2021/02/Benefits.png)
Benefits
![](https://www.electrolabgroup.com/wp-content/uploads/2021/02/60-savings.png)
60% savings
![](https://www.electrolabgroup.com/wp-content/uploads/2021/02/Device-Checks.png)
Device Checks
![](https://www.electrolabgroup.com/wp-content/uploads/2021/02/Touch-screen-3.png)
Touch Screen
![](https://www.electrolabgroup.com/wp-content/uploads/2021/06/Dilution-with-Stirring.png)
Dilution with Stirring
![](https://www.electrolabgroup.com/wp-content/uploads/2021/02/Audit-Trail-1.png)
Audit Trail
![](https://www.electrolabgroup.com/wp-content/uploads/2021/02/Electronic-Log-Book.png)
Electronic Log Book
![](https://www.electrolabgroup.com/wp-content/uploads/2021/02/Authority-Checks.png)
Authority Checks
![](https://www.electrolabgroup.com/wp-content/uploads/2021/02/Fingerprint-Authentication.png)
Fingerprint Authentication
![](https://www.electrolabgroup.com/wp-content/uploads/2021/06/Infinity-Test.png)
Infinity Test
![](https://www.electrolabgroup.com/wp-content/uploads/2021/02/AutoDropSync-Optional.png)
AutoDropSync (Optional)
![](https://www.electrolabgroup.com/wp-content/uploads/2021/02/IntegrOS.png)
IntegrOS
![](https://www.electrolabgroup.com/wp-content/uploads/2021/02/Multi-Level-Security.png)
Multi-Level Security
![](https://www.electrolabgroup.com/wp-content/uploads/2021/02/Multi-stage-Filtration.png)
Multi-stage Filtration
![](https://www.electrolabgroup.com/wp-content/uploads/2021/02/Isolated-Temperature-Controller.png)
Isolated Temperature Controller
![](https://www.electrolabgroup.com/wp-content/uploads/2021/02/LAN-1.png)
LAN
![](https://www.electrolabgroup.com/wp-content/uploads/2021/02/Print-Report.png)
Print Report
![](https://www.electrolabgroup.com/wp-content/uploads/2021/06/Snap-Fit-Shaft.png)
Snap-Fit Shaft
![](https://www.electrolabgroup.com/wp-content/uploads/2021/08/Quality-by-design.png)
Quality by Design
![](https://www.electrolabgroup.com/wp-content/uploads/2021/02/Limited-System-Access.png)
Limited System Access
![](https://www.electrolabgroup.com/wp-content/uploads/2021/02/Accurate-and-Complete-Copies-of-Records.png)
Accurate and Complete Copies of Records
![](https://www.electrolabgroup.com/wp-content/uploads/2021/02/Metadata-Storage.png)
Metadata Storage
![](https://www.electrolabgroup.com/wp-content/uploads/2021/06/Rinsing.png)
Rinsing
![](https://www.electrolabgroup.com/wp-content/uploads/2021/02/Sample-Collector-Tray-2.png)
Sample Collector Tray
![](https://www.electrolabgroup.com/wp-content/uploads/2021/06/Motorized-Lift-Mechanism.png)
Motorized Lift Mechanism
7" TFT touch screen display |
LAN connectivity allows central printing |
Multilevel security with password for 250 users with user programmable role |
Alphanumeric data entry of product and user details |
Complies with USP, IP, Ph. Eur. and JP specifications |
Unique TimeAction™ function which allows media changeover and infinity test run, ideal for sustained and controlled release products |
Programmable different aliquot volume for each sample Interval allows variable dilution |
Automatic stirrer height positioning for USP 1, 2, 5, 6, intrinsic test methods |
Easy Snap-Fit shaft locking mechanism for positive engagement and wobble free operation |
Molded clear water bath |
Easy to empty and clean water bath with bottom drainage |
Precise individual vessel centering system |
Adjustable leveling of instrument |
Vibration free smooth motorized lift movement |
Isolated temperature controller and water circulating pump (vibration-free & precise) with wake up and sleep modes which saves time and energy |
1000 programmable products |
24 programmable sampling intervals |
10000 test report storage |
Instrument accessories like paddles, baskets, vessels etc. are laser marked with serial numbers |
Designed to minimize routine validation |
Programmable report template |
Report for online validation of test, monograph, error log during the test |
Programmable sample volume from 1 ml to 20 ml |
Finger print module |
Power failure detection and auto recovery facility |
Delight technology enabling audio visual indication of instrument status |
250 users |
Audit trial |
E - signature |
Specifications
Model | TRUST E 8 with manual syringe sampling |
Speed range | 20 RPM - 300 RPM |
Temperature Range | 20 C to 40 C(Extended range 10⁰C to 40⁰C & 20⁰C to 55⁰C optional) |
Vessels Capacity | 1 L, 2 L, 250 ml, 100 ml ,500 ml |
Media Volume | 500 ml – 1000 ml (Programmable) |
Water Bath | One piece moulded clear or amber |
Temperature accuracy | (± 0.1 C) |
Display Resolution | 0.1 °c |
Resolution | 0.1 RPM |
Speed Accuracy | ± 0.5 RPM |
Temperature controller | Heater : 1KW, SS 316 with thermal protection Sensor : RTD |
Stirrer Drive | High performance BLDC (maintenance free) |
Sample interval | 1 min to 999 hrs, 59 min |
Display Screen | 7" TFT Touch Screen Display |
Product Storage | 1000 |
Test Report Storage | 10000 |
Interface Ports | RS-232 (1 No.), RS-485 (1 Nos.), LAN (1 No.) |
Dimensions ( W x L x H) | 517 x 712 x 690 mm |
Weight (Basic) | 126 kg |
Electrical Power | 220/230 VAC, 50/60Hz, 1.3KW / 6 Amp 110 VAC, 50/60Hz, 1.3KW / 6 Amp |
Ordering Information
Products | ||
Product Code | Description | Quantity |
0129504 | TrustE-08 Manual Syringe Sampling -230V | 1 |
0119504 | TrustE-08 Manual Syringe Sampling -110V | 1 |
Accessories | ||
Part number | Description | Quantity |
0105A00075 | EDT laser marked basket mesh 40 (Set of 6) | 1 |
0104A00066 | EDT basket rod | 8 |
0104A00818 | Secure Clip Basket Holder | 6 |
0104A00152 | EDT Moulded Tray For Basket, Basket Holder & Rod | 1 |
0104A00091 | EDT Laser Marked Paddles For 1000 MI Glass Vessel (Set of 6) | 1 |
0104A00093 | EDT Moulded Tray For Paddles | 1 |
0104A00398 | EDT Glass Vessel 1000ml - Clear With Sigma Delta Certificate (Set of 6) | 1 |
0104000242 | EDT Merlon Vessel 1000ml - Clear (N) | 2 |
0104BV4114 | EDT-Lx V-4 Temperature Controller ETC-15 | 1 |
0104A00610 | Stirrer for replenishment | 2 |
0104BV4155 | EDT V-5 External Probe Without Trim Pot | 1 |
IntegrOS Lite Version | 1 |
Offline Sampling Accessories | ||
Part number | Description | Quantity |
0104A00322 | PTFE carrier tubing | 6 |
0104000334 | Syringe manifold | 1 |
0134800001 | Individual vessel temperature sensors with cable and connector | 1 |
0171A00011 | Trust E-8 Tablet Dispenser Plate | 1 |
0104800048 | EDT dispenser plate holder (Set of 2) | 1 |
Optional Accessories | ||
Part number | Description | Quantity |
0104A00477 | EDT ClearView™(230V) Version-2.1 | 1 |
0104A00445 | Biometrics (200+users and 5 finger prints each) | 1 |
0909A00008 | 40 column embedded printer | 1 |
0104A00480 | Vibro | 1 |
0104A00398 | EDT Laser marked glass vessel 1000 Ml - clear with sigma delta certificate | 1 |
0104A00401 | EDT laser marked glass vessel 1000 ml - amber with sigma delta certificate | 1 |
0104A00259 | EDT merlon vessel 1000ml amber (N) | 1 |
0104A00785 | Connexion+ | 1 |
1071A00007 | TrustE-08 Tablet Dispenser Plate with Provision for Manual Sampling | 1 |
0171A00015 | Veritas / TrustE-08 auto Dispenser Plate with Provision for Manual Sampling | 1 |
0104A00179 | 10 Mesh Customized Stationary Basket (Set Of 6) | 1 |
0104A00252 | EDT Laser Marked Basket 20 Mesh | 1 |
0104A00054 | EDT Basket 10 Mesh (Set of 6) | 1 |
0104A00055 | EDT Basket 20 Mesh (Set of 6) | 1 |
0104A00280 | EDT Basket 20 Mesh 24.5 mm (Set of 6) With Laser Marking & Certificate | 1 |
0104A00056 | EDT Basket 30 Mesh (Set of 6) | 1 |
0104A00057 | EDT Basket 40 Mesh (Set of 6) | 1 |
0169000012 | Veritas laser Marked Paddles for 2 Ltr. TM | 1 |
