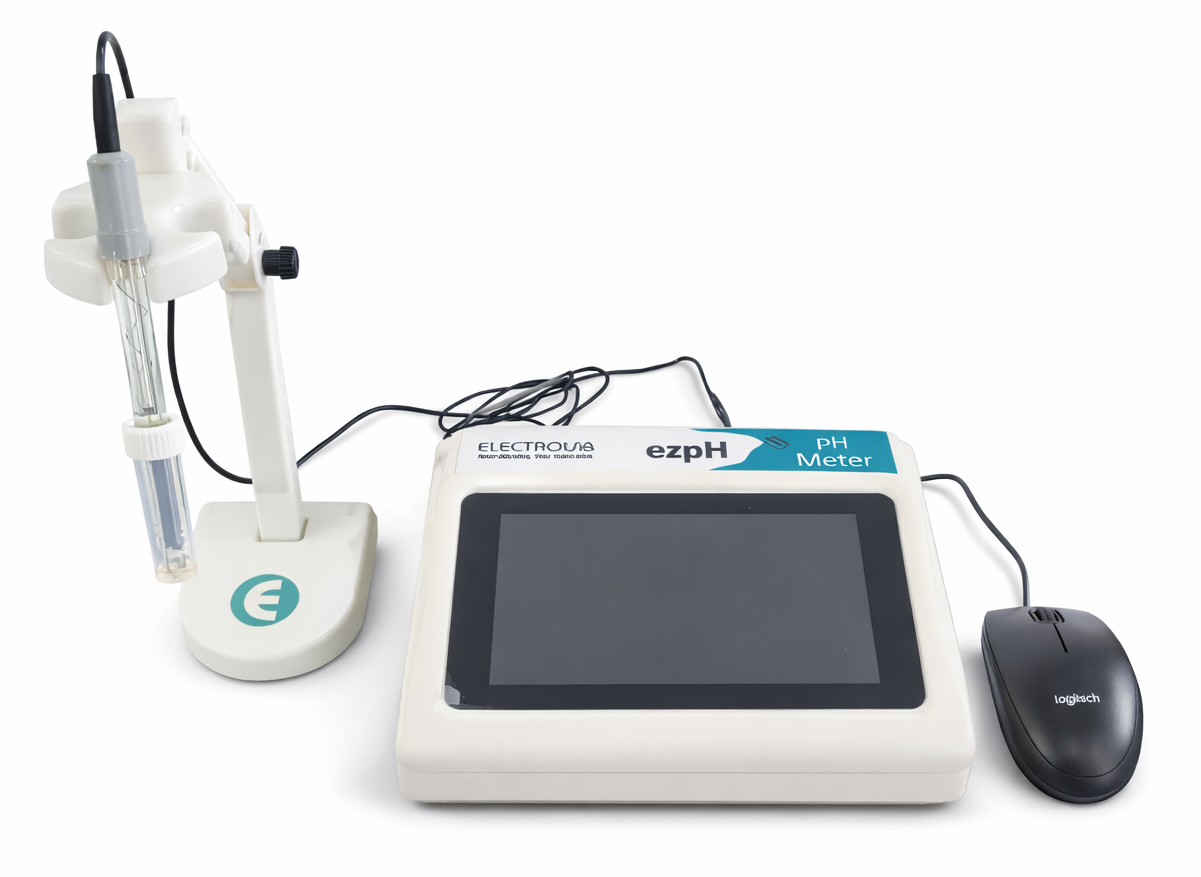

PH Ions & Conductivity Meter
Features
Corrosion resistant HIPS plastic body |
Easy to use, built-in, menu-driven instructions on 7" touch screen TFT display |
Mouse and keyboard connectivity |
USB port for printer is provided for direct printout without using PC (having Linux support) |
Pen drive connectivity |
GLP Compliance reports with Time, Date and sample identification number facility |
Calibration methods can be stored |
1000 reports can be stored |
Automatic Temperature Compensation |
Data Logging and Reporting: The authenticity of the reports generated can be ensured with the date/time indication in the report. The reports can be seen on the display |
Manual Data Logging: Large memory to store 1000 reports |
Automatic Data Logging: To store the pH value at specified time intervals (selectable from 1 to 999 minutes) up to 50 readings can be taken |
Specifications
Parameters | pH, ORP, mV, Temperature |
pH | |
pH Range | 0 to 14.000 pH |
Display Capacity | -2.000 to 20.000 pH |
pH Resolution | 0.001 pH |
pH Accuracy | ±0.01 pH |
pH Calibration | 1 to 5 Point Calibration |
ORP | |
ORP Range | ±2499 mV |
ORP Resolution | 0.1 mV |
ORP Accuracy | ±0.1 mV |
ORP Calibration | 2 Point (84.0 mV and 263 mV) |
mV | |
mV Range | ±2499 mV |
mV Resolution | 0.1 mV |
mV Accuracy | ±0.1 mV |
Temperature | |
Temperature Range | 0°C to 100°C |
Temperature Resolution | 0.01°C |
Temperature Accuracy | ±0.5°C |
Power Supply | 24V DC Mains Adaptor |
Dimensions (L x W x H) | 230 mm x 190 mm x 80 mm |
Weight | 1 Kg (approx) |
