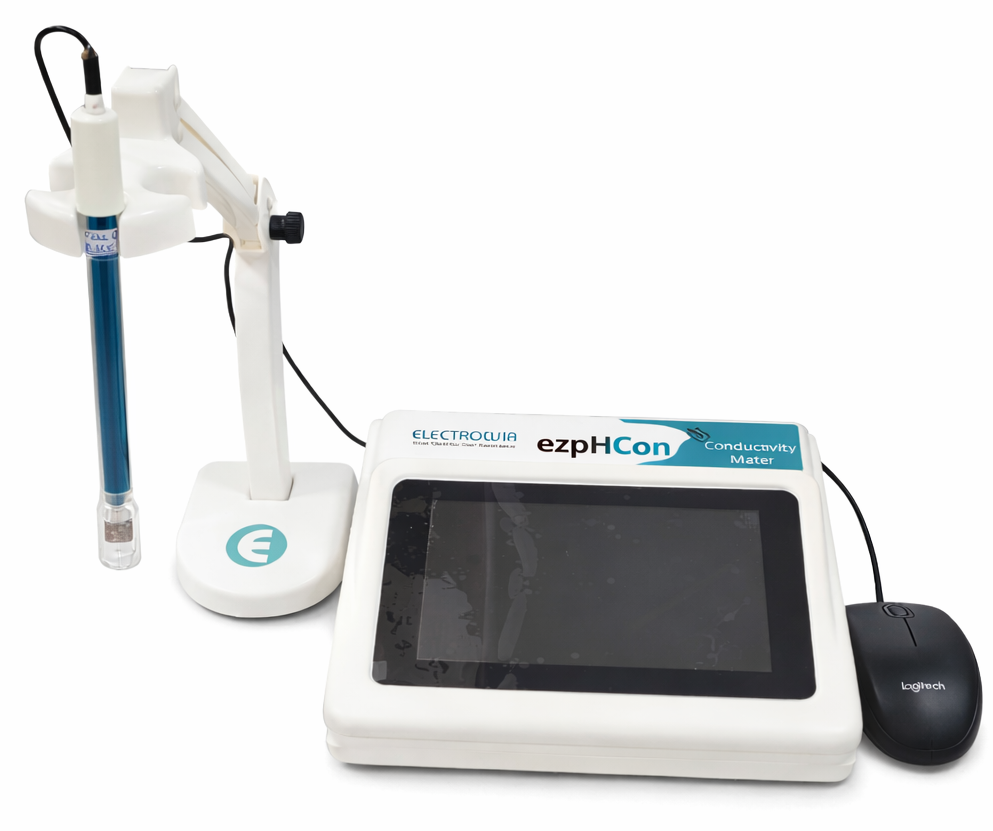

PH Ions & Conductivity Meter
Features
Corrosion resistant HIPS plastic body |
Easy to use, built-in, menu-driven instructions on 7" touch screen TFT display |
Mouse and keyboard connectivity |
USB port for printer is provided for direct printout without using PC (having Linux support) |
Pen drive connectivity |
GLP Compliance reports with Time, Date and sample identification number facility |
Calibration methods can be stored |
1000 reports can be stored |
Automatic Temperature Compensation |
Data Logging and Reporting: The authenticity of the reports generated can be ensured with the date/time indication in the report. The reports can be seen on the display |
Manual Data Logging: Large memory to store 1000 reports |
Automatic Data Logging: To store the pH value at specified time intervals (selectable from 1 to 999 minutes) up to 50 readings can be taken |
Specifications
Model: | EzpHCon |
Parameters: | pH, ORP, mV, Temperature, Resistivity, Salinity, TDS, Conductivity |
pH | |
pH Range: | 0 to 14.000 pH |
Display Capacity: | -2.000 to 20.000 pH |
pH Resolution: | 0.001 pH |
pH Accuracy: | ±0.01 pH |
pH Calibration: | 1 to 5 Point Calibration |
ORP | |
ORP Range: | ±2499 mV |
ORP Resolution: | 0.1 mV |
ORP Accuracy: | ±0.1 mV |
ORP Calibration: | 2 Point (84.0 mV and 263 mV) |
mV | |
mV Range: | ±2499 mV |
mV Resolution: | 0.1 mV |
mV Accuracy: | ±0.1 mV |
Temperature | |
Temperature Range: | 0°C to 100°C |
Temperature Resolution: | 0.01°C |
Temperature Accuracy: | ±0.5°C |
Resistivity | |
Resistivity Range: | 5Ωcm to 50MΩcm |
Resistivity Resolution: | 1 LSD (0.001) |
Resistivity Accuracy: | ±2% FS |
Resistivity Unit: | Ωcm |
Salinity | |
Salinity Range | 0 ppt to 120 ppt |
Salinity Resolution | 1 ppt |
Salinity Accuracy | ±2% FS |
Salinity Unit | ppt (Parts Per Thousand) |
TDS | |
TDS Conversion Factor | TDS is derived from conductivity |
TDS Range | 10 ppb to 200 ppt (10 ppb to 200000 ppm) |
TDS Resolution | 1 ppb for lower range and 1 ppm for higher range |
TDS Accuracy | ±2% FS |
TDS Unit | ppt, ppm, ppb |
Conductivity | |
Conductivity Resolution | 1 LSD |
Conductivity Accuracy | ±2% FS |
Conductivity Unit | µS, mS |
Conductivity Calibration | 5 Point Calibration |
Auto Temperature Compensation | Upto 55°C |
Auto Ranging | The smart software automatically selects the range, from 0.02mS to 2000mS/cm (with appropriate conductivity cell) |
Conductivity Cells | Standard supply for cell constant 0.1 (cell with cell constant 1.0 can be ordered if required) |
Conductivity Range | 0.02µScm⁻¹ to 2000mScm⁻¹ |
Cell constant K=0.1 (0.02µS to 2mS) | |
Cell constant K=1.0 (2mS to 200mS) | |
Cell constant K=10 (200mS to 2000mS) | |
Power Supply | 24V DC Mains Adaptor |
Dimensions (L x W x H) | 230 mm x 190 mm x 80 mm |
Weight | 1 Kg (approx) |
