PH Ions & Conductivity Meter

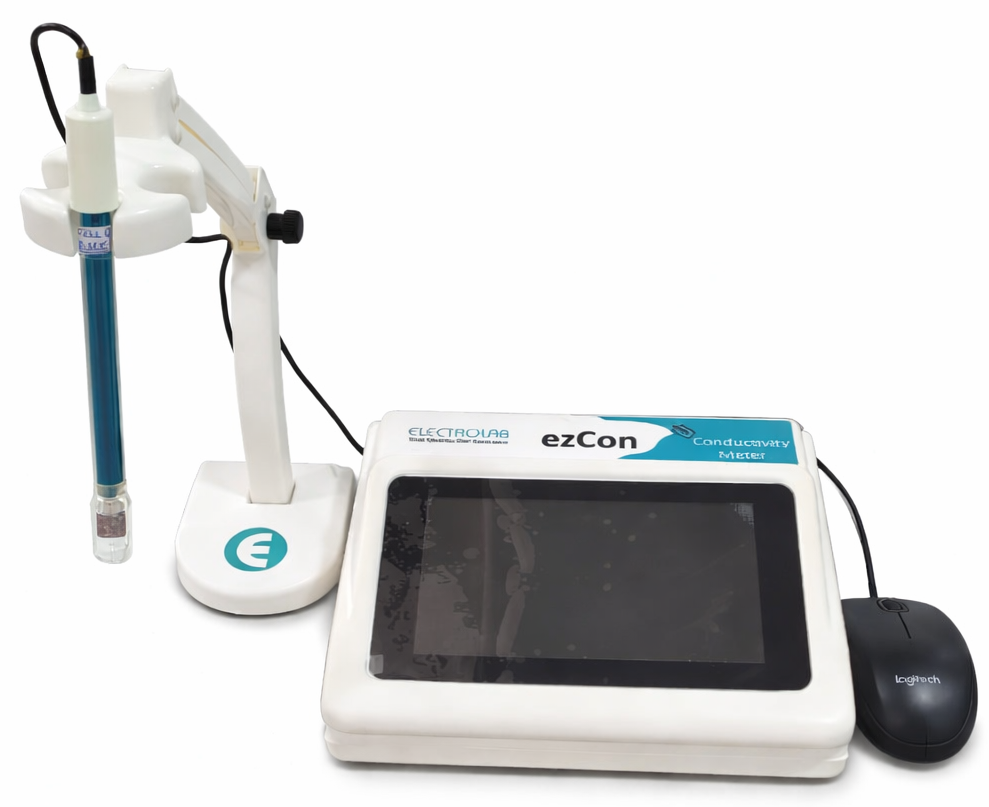

Conductivity Meter – EzCon

10 in stock

Features

Corrosion resistant HIPS plastic body
Easy to use, built-in, menu-driven instructions on 7" touch screen TFT display
Mouse and keyboard connectivity
USB port for printer is provided for direct printout without using PC (having Linux support)
Pen drive connectivity
GLP Compliance reports with Time, Date and sample identification number facility
Calibration methods can be stored
1000 reports can be stored
Automatic Temperature Compensation
Data Logging and Reporting : The authenticity of the reports generated can be ensured with the date/time indication in the report. The reports can be seen on the display
Manual Data Logging : Large memory to store 1000 reports
Automatic Data Logging : Selectable from 1 to 999 minutes (upto 50 readings can be taken

Specifications

ModelEzCon
ParametersTemperature, Resistivity, Salinity, TDS, Conductivity
Temperature Range0°C to 100°C
Temperature Resolution0.01°C
Temperature Accuracy±0.5°C
Resistivity Range50Ωcm to 50MΩcm
Resistivity Resolution1 LSD (0.001)
Resistivity Accuracy±2 % FS
Resistivity UnitΩcm
Salinity Range0 ppt to 120 ppt
Salinity Resolution1 ppt
Salinity Accuracy±2 % FS
Salinity Unitppt (Parts Per Thousand)
TDS Conversation FactorTDS is derived from conductivity
TDS Range10 ppb to 200 ppt (10 ppb to 200000 ppm)
TDS Resolution1 ppb for lower range and 1 ppm for higher range
TDS Accuracy±2 % FS
TDS Unitppt, ppm, ppb
Conductivity Resolution1 LSD
Conductivity Accuracy±2 % FS
Conductivity UnitμS, mS
Conductivity Calibration5 Point Calibration
Auto Temperature CompensationUpto 55°C
Auto RangingThe smart software automatically selects the range, from 0.02mS to 2000mS/cm (with appropriate conductivity cell)
Conductivity CellsStandard supply for cell constant 0.1 (cell with cell constant 1.0 can be ordered if required)
Conductivity Range0.02μScm⁻¹ to 2000mScm⁻¹

Cell constant K=0.1 (0.02μS to 2mS)
Cell constant K=1.0 (2mS to 200mS)
Cell constant K=10 (200mS to 2000mS)
Power Supply24V DC Mains Adaptor
Dimensions (L x W x H)230 mm x 190 mm x 80 mm
Weight1 Kg (approx)

Ordering Information
