Dissolution Testers – USP 1/2/5/6

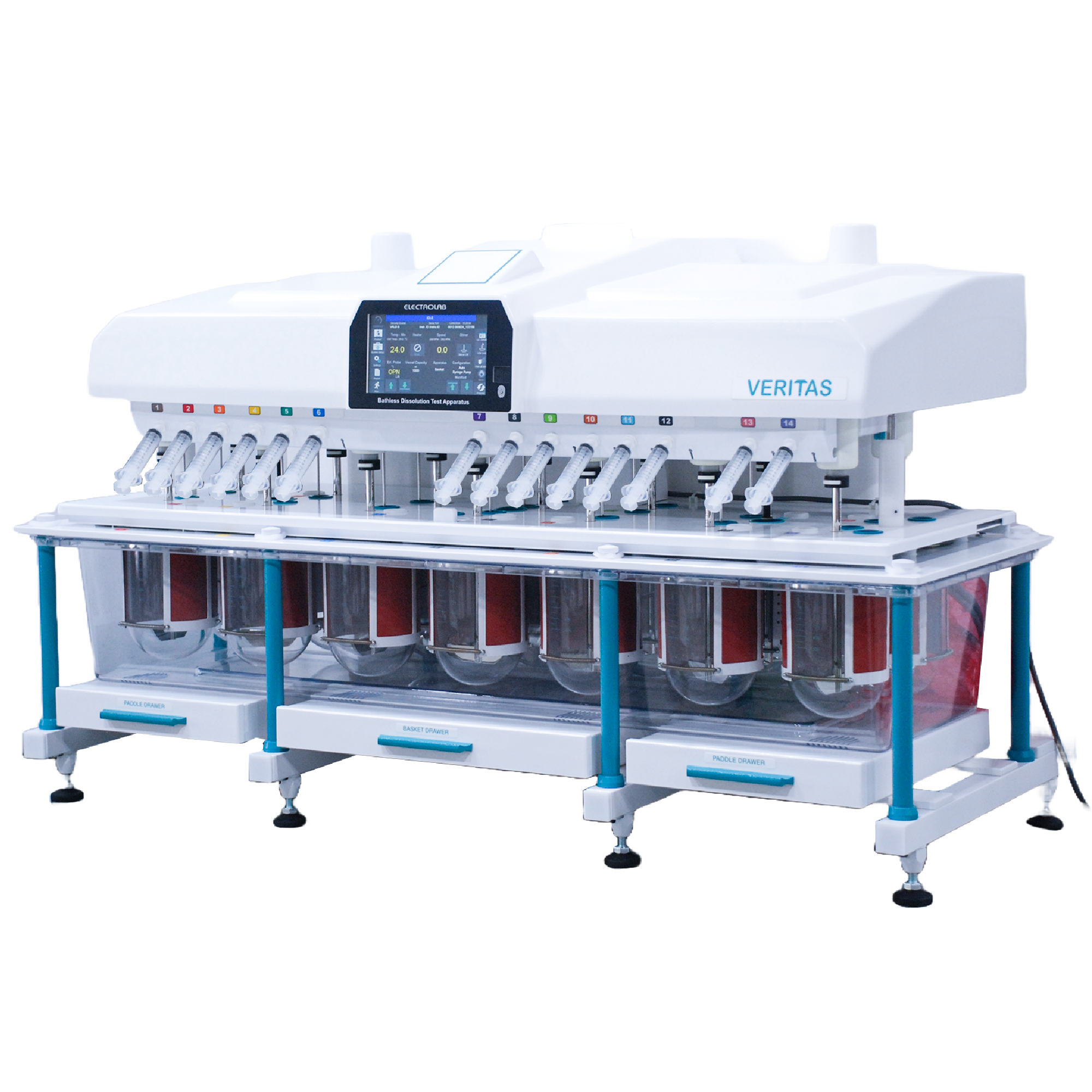

Veritas-14 Manual syringe sampling
Features
Bathless Heating
Identifies Position
Continuous Temperature Monitoring
Infinity Test
Sample Collector Tray
Customized Reports
Maintenance Free
Snap-Fit Shaft
Dilution with Stirring
Motorized Lift Mechanism
Time Saving
D'light Technology
Quality by Design
Touch Screen
Ethernet Connectivity
Rinsing
| 7" TFT touch screen display |
| LAN connectivity allows central printing Multilevel security with password for 250 users with user programmable role |
| Unique TimeAction™ function which allows media changeover and infinity test run, ideal for sustained and controlled release products |
| Programmable different aliquot volume for each sample Interval allows variable dilution |
| Complies with USP, IP, Ph. Eur. and JP specifications |
| Bathless heating (saves water, time, electricity) |
| Bathless dissolution Tester is maintenance-free |
| Specially designed efficient heater jackets for vessel, o heats the media quickly attains temperatures from 25 o C to 37o C within approximately 15 minutes |
| V-stir ensures continuous wireless TM(Patented) temperature monitoring without affecting the hydrodynamics in the vessel. |
| V-StirTM(Patented) identifies position and apparatus type and apparatus presence to reduce manual errors |
| Easy Snap-FitTM shaft locking mechanism for positive engagement and wobble free operation. |
| Intuitive 7" TFT touch-screen graphic display |
Visual indication along with sound alert of dissolution instrument status from all sides of the instrument Idle Ready Run Error |
| Ethernet connectivity allows central printing of data |
| In-built accessory drawer for storing the baskets and paddles |
| IntegrOS standard licence default |
| Finger print module |
| 250 users |
| Audit trial |
| E-signature |
| Auto drop sync |
| Intense rinse |
| Rinse by purge |
| Rinse by loopback |
Specifications
| No. Of Stations | 14 |
| Speed Range | 20 to 300 RPM |
| Speed Accuracy | ± 0.5 RPM |
| Temperature Range | 20° C to 40°C |
| Temperature Accuracy (At 37° C) | ± 0.1°C |
| Display | 7" TFT touch screen display |
| No. Of Protocols | 1000 |
| No. of sample | 24 |
| Sample Interval | 1min to 999hrs, 59 min |
| No. of syringes | Standard: 12, Optional: 14 |
| Interface Port | Ethernet, RS 232, RS 485 |
| Stirrer Drive | High performance BLDC (maintenance -free) |
| Vessel Capacity | 1 L |
| Electrical Power | 220 /230 /VAC , 50 / 60 HZ, 950W / 4.5Amp 110 VAC, 50 / 60 Hz , 950 W /8.8Amp |
Ordering Information
| Products | ||
| Product Code | Description | Quantity |
| 01210004 | Veritas-14 with Manual Syringe Sampling 230V | 1 |
| 01110004 | Veritas-14 with Manual Syringe Sampling 110V | 1 |
| Standard Accessories | ||
| Part number | Description | Quantity |
| 0104A00400 | EDT laser marked glass vessel 1000 ml - clear with sigma delta certificate | 14 |
| 0104BV4124 | EDT-Lx V-4 Electrolab Communication Device ECD-06 | 1 |
| 0104A00050 | EDT Disposable Filters (PKT of 100) | 1 |
| 0104A00439 | IntegrOS lite version | 1 |
| Optional Accessories | ||
| Part number | Description | Quantity |
| 0169A00001 | EDT-BTv laser marked V-stir basket with rod | 1 |
| 0169A00002 | EDT-BTv laser marked V-stir paddle for 1000 ml glass vessel | 1 |
| 0104A00401 | EDT laser marked glass vessel 1000 ml - amber with sigma delta certificate | 1 |
| 0104A00480 | EDT Vibro | 1 |
| 0104A00440 | IntegrOS standard version | 1 |
| 0104A00438 | IntegrOS pro version with 21 CFR | 1 |
| 0104A00445 | Biometrics | 1 |
| 0909A00008 | 40 Column Embedded Printer | 1 |
| 0172ASC001 | ESC Dx Glass Tubes 20ml - Clear | 1 |
| Manual syringe sampling attachment | ||
| Part number | Description | Quantity |
| 0168A00001 | Motorised sampling manifold | 1 |
| 0104A00322 | PTFE carrier tubing | 12 |
| 0104A00334 | Syringe manifold | 1 |
| 0134B00001 | Individual vessel temperature sensors with cable and connector | 12 |
