Dissolution Testers – USP 1/2/5/6

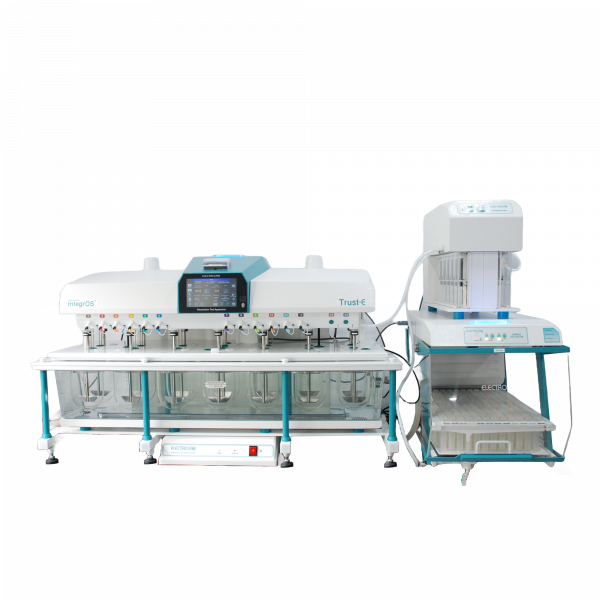

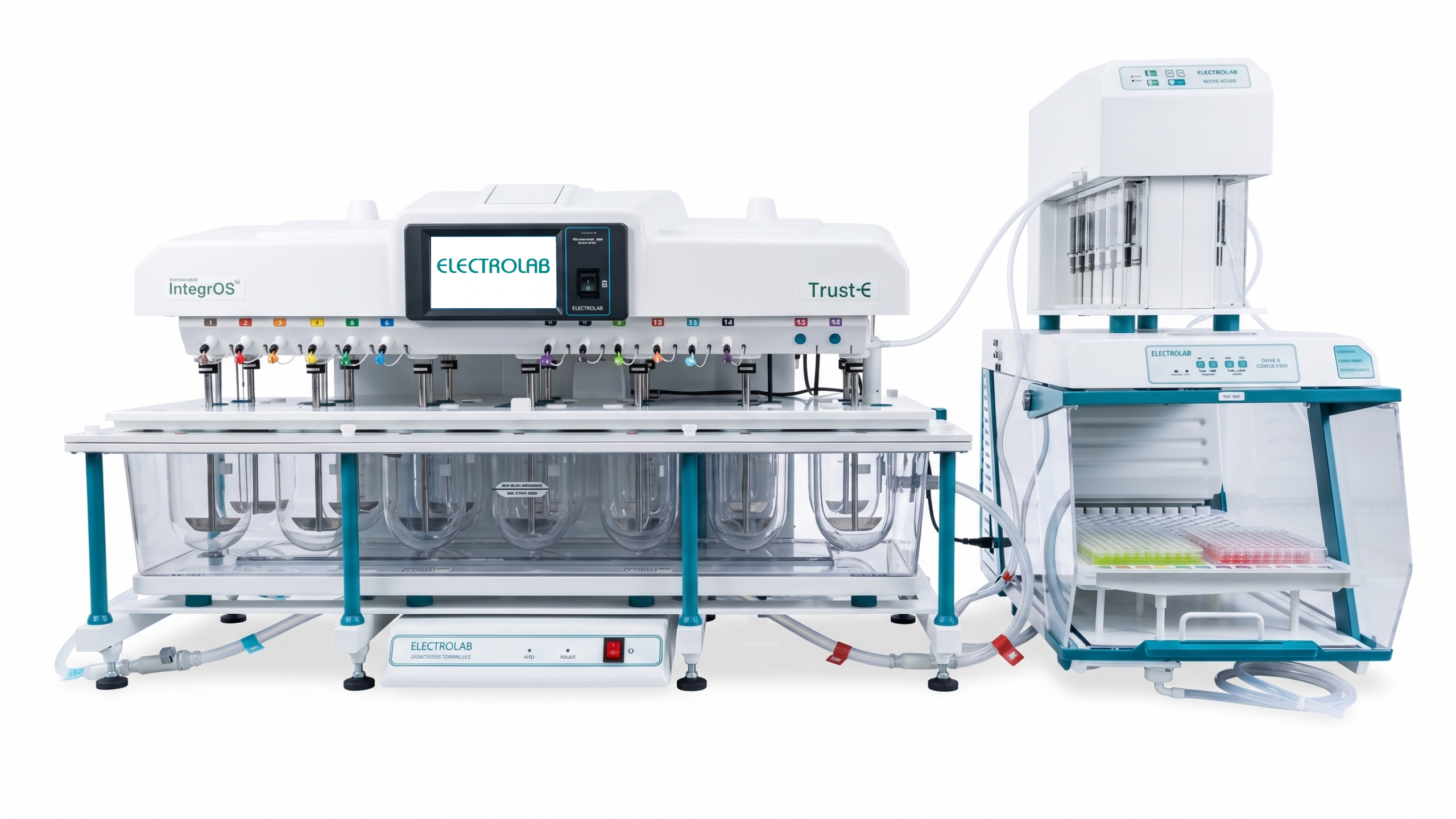

TrustE-14 with Sample Collector (Dx)
Features
21 CFR
Benefits
60% savings
Device Checks
Accurate and Complete Copies of Records
Dilution with Stirring
Audit Trail
Electronic Log Book
Authority Checks
Fingerprint Authentication
AutoDropSync (Optional)
Infinity Test
IntegrOS
Multi-Level Security
Isolated Temperature Controller
Multi-stage Filtration
LAN
Print Report
Snap-Fit Shaft
Limited System Access
Quality by Design
Touch Screen
Metadata Storage
Rinsing
Motorized Lift Mechanism
Sample Collector Tray
| 7" TFT touch screen display |
| LAN connectivity allows central printing |
| Multilevel security with password for 250 users with user programmable role |
| Alphanumeric data entry of product and user details |
| Unique TimeAction™ function which allows media changeover and infinity test run, ideal for sustained and controlled release products |
| Programmable different aliquot volume for each sample Interval allows variable dilution |
| Complies with USP, IP, Ph. Eur. and JP specifications |
| Automatic stirrer height positioning for USP 1, 2, 5, 6, intrinsic test methods |
| Molded clear water bath |
| Easy to empty and clean water bath with bottom drainage |
| Precise individual vessel centering system |
| Adjustable leveling of instrument |
| Easy Snap-FitTM shaft locking mechanism for positive engagement and wobble free operation. |
| Vibration free smooth motorized lift movement |
| Isolated temperature controller and water circulating pump (vibration-free & precise) with wake up and sleep modes which saves time and energy |
| 1000 programmable products |
| 24 programmable sampling intervals |
| 10000 test report storage |
| Instrument accessories like paddles, baskets, vessels etc. are laser marked with serial numbers |
| Designed to minimize routine validation |
| Programmable report template |
| Report for online validation of test, monograph, error log during the test |
| Programmable sample volume from 1 ml to 20 ml |
| Audio-visual indicators for system status |
| Power failure detection and auto recovery facility |
| Delight technology enabling audio visual indication of instrument status |
| Finger print module |
| 250 users |
| Audit trial |
| E-signature |
| Auto dispensor |
| Intense rinse |
| Rinse by purge |
| Rinse by loopback |
Specifications
| No. Of Stations | 14 |
| Speed Range | 20 RPM to 300 RPM |
| Speed Accuracy | ± 0.5 RPM |
| Temperature Range | 20° C to 40°C (extended range 10 to 40 and 20 to 55 optional) |
| Temperature Accuracy (At 37° C) | ± 0.1°C |
| Display | 7" TFT touch screen display |
| Test report storage | 10000 |
| Sample Interval | 1min to 999hrs, 59 min |
| No. of syringes | Standard : 12, Optional : 14 |
| Interface Port | Ethernet, RS 232, RS 485 |
| Stirrer Drive | High performance BLDC (maintenance free) |
| Vessel Capacity | 150 ml, 250 ml, 1 L, 2 L |
| Bath capacity | 28L |
| Water bath | One piece moulded clear |
| Temperature controller | Heater : 1 kW, SS 316 with thermal protection |
| Electrical Power | 220/230 VAC, 50/60 Hz, 1.3 kW/6 Amp 110 VAC, 50/60 Hz, 1.3 kW/10 Amp |
| Dimensions (L x W x H) : | |
| Basic | 115 cm x 51 cm x 71 cm |
| Offline Automation System | 156 cm x 51 cm x 71 cm |
| Weight : | |
| Basic | 126 kg |
| Offline Automation System | 212 kg |
Ordering Information
| Products | ||
| Product Code | Description | Quantity |
| 01210504 | TrustE-14 with Dx -230V | 1 |
| 01110504 | TrustE-14 with Dx -110V | 1 |
| Standard Accessories | ||
| Part number | Description | Quantity |
| 0105A00075 | EDT laser marked basket 40 mesh | 14 |
| 0104A00066 | EDT basket rod | 14 |
| 0104A00069 | EDT basket holder with 'O' ring | 14 |
| 0104A00152 | EDT molded tray for basket, basket holder & rod | 1 |
| 0104A00091 | Serialized laser marked paddle (USP II) | 14 |
| 0104A00093 | EDT molded tray for paddles | 1 |
| 0104A00398 | EDT glass vessel 1000 ml – clear with sigma delta certificate | 12 |
| 0104A00242 | EDT merlon vessel -1000 ml (clear) | 2 |
| 0104A00042 | EDT low evaporation vessel lid | 14 |
| 0104A00018 | EDT V-1234 external probe | 1 |
| 0104BV4114 | External Temperature Control Unit (ETC-15) | 1 |
| 0104BV4124 | EDT-Lx V-4 Electrolab Communication Device (ECD) | 1 |
| 0104A00050 | EDT disposable filters (Packet of 100) | 1 |
| 0104A00439 | IntegrOS lite version | 1 |
| Optional Accessories | ||
| Part number | Description | Quantity |
| 0104A00477 | EDT ClearView (230V) Version-2.1 | 1 |
| 0104A00445 | Biometrics | 1 |
| 0909A00008 | 40 column embedded printer | 1 |
| 0104A00480 | Vibro | 1 |
| 0104A00398 | EDT laser marked glass vessel 1000ml - clear with sigma delta certificate | 1 |
| 0104A00401 | EDT laser marked glass vessel 1000ml - amber with sigma delta certificate | 1 |
| 0104A00259 | EDT merlon vessel 1000ml amber (N) | 1 |
| 0104A00440 | IntegrOS standard version | 1 |
| 0104A00438 | IntegrOS pro version with 21 CFR | 1 |
| 0114ASC007 | HPLC vial tray for 1.5 ml (24 x 8 ) | 1 |
| 0121ASC0 | HPLC vial tray for 1.5 ml dilution possible (10 ml to 1.5ml) (12x8) | 1 |
| 0172ASC013 | Combination tray (20 ml to 1.5ml) (8x8) | 1 |
| 0172ASC004 | Waste collection tray | 1 |
| Offline Sampling Accessories | ||
| Part number | Description | Quantity |
| 0168A00001 | Motorised sampling manifold | 1 |
| 0104A00322 | PTFE carrier tubing | 12 |
| 0104A00334 | Syringe manifold | 1 |
| 0134B00001 | Individual vessel temperature sensors with cable and connector | 12 |
| 0114BSP046 | ESP-124 syringe pump (with 10ml syringe) | 1 |
| 1621200 | EDT sample collector model – ESC-12Dx | 1 |
| 0121ASC010 | ESC-06Dc inert disposable polypropylene vials 20ml(set of 96) | 1 |
| 0104A00050 | EDT Disposable Filters (PKT of 100) | 1 |
| 0121ASC010 | Sample collector vial tray -20 ml vials | 1 |
| 0104A00453 | AutoDropSync (Automatic dropping of tablets) | 1 |
