Physical Testers





SWFT-5

Features
Accurate and Precise Tester
Audit Trail
Calibration and Verification
Compliance
Constant Speed
Print Report
Diameter-Length
Thickness
D'lightTM Technology
Tolerance
Electronic Instrument Log Book
Touch Screen Display
Hardness
Weight
Mult-level Security
Width
Tablet Testing
Features of optical DO probe:
Measures 5 parameters - Weight, Thickness, Diameter
(Length), Width and Hardness
Full color intuitive touch screen display
Constant speed and constant force measuring principle
Up to 21 samples per test
Multilevel level user management security
Indicator for calibration due date
Light and audio alarm indicator for Instrument status
Programmable calibration and verification modes
User selectable templates for printing reports and
graphs
Weighing balance connectivity
Finger print sensor weighing scale
Audit trial
Protective cover to protect operator from inhaling tablet
dust from tablets that 'explode'
E-signature
Specifications
ModelEHT-5PR TURBO
ParameterWeight, Internal Thickness/ External Thickness,
Diameter/ Length, Width, Hardness
Hardness working principleConstant speed
Display7.0" touch screen display
Constant speed range1 mm/sec to 3 mm/sec
Adjustable delays between the samples1 sec to 99 sec
Measuring princile Constant speed
Printing of data and graphs User defined templates
Hardness Range3N - 800N
Accuracy±1N
Diameter/length measurement range2 - 26 mm
Diameter/length accuracy± 0 .05 mm
Width measurement range2 - 26 mm
Width accuracy± 0 .05 mm
Units for HardnessN,Kp,Sc,User defined
Units for Thickness/diametermm/inch
Compatible weighing balanceE x t ernal balance interface
Units for weight g or mg
Size (W x D x H)400 x 476 x 281 mm (With hood)
21 CFR Part 11 Compliance Yes with integrOS Pro
Electrical power230 VAC, 50/60 Hz, 100 W/Amp
110 VAC, 50/60 Hz, 100 W/Amp
Weight26 kg
Ordering Information
Products
Product CodeDescriptionQuantity
0941300
SWFT-5 (Body made of S.S.) -230V1
0941400 SWFT-5W (Body made of S.S.) -230V1
Standard Accessories
Part number
DescriptionQuantity
0905A00001 IntegrOS lite1
0905A00014 Brush1
Optional Accessories
Part number
DescriptionQuantity
0905A00007 STARLITE-12 Thermal paper roll1

0901A00001

0901A00010
Validation kit :
5 Kg brass weight for calibration and validation

10 mm calibrated gauge block for validation
1
0901A000
IntegrOS- Standard1
0901A000
IntegrOS- Pro1
0104A00445 Biometrics
1

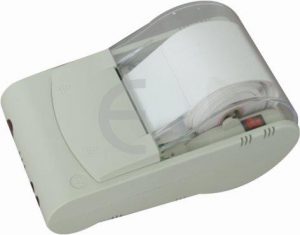

0909B00003 Embedded printer1
