Leak Tester

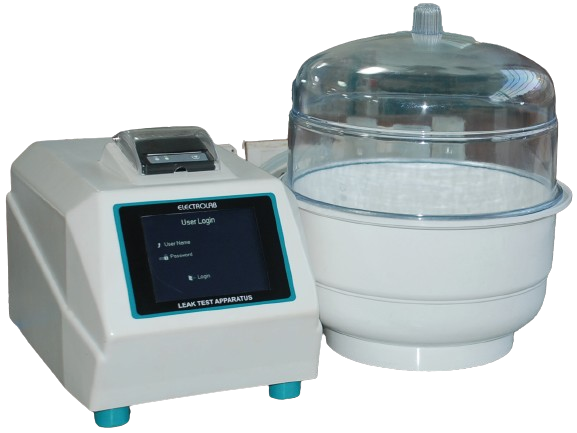

Leak Tester ELT-201WP
Features
| Meets USP specifications and packaging standards |
| 5.7 inch graphical touch screen display |
| Programmable vacuum level and hold time |
| Slow venting for better results |
| Validation report printout (Serial / LAN) |
| Oil-less vacuum pump |
| Tolerance range setting to give pass / fail results |
| Programmable 20 methods and storage of 20 product data |
| Ideal for checking leakage of packed strips, blisters, small sachets and ampoules |
Specifications
| Model | ELT-201WP |
| Vacuum level | 2 mmHg to 650 mmHg |
| Timer | Maximum can be set up to 00.01 minutes Minimum can be set up to 99.59 min |
| Vacuum setting level | Vacuum can stabilize to the set value +5 mmHg within 90 secs |
| Power | 300 VA |
| Dimension ( W x L x H) | 396 x 245 x 228 |
| printer connectivity | Embedded 40 column thermal printer, LAN and serial port |
Ordering Information
| Products | ||
| Product Code | Description | Quantity |
| 5030300 | ELT-201WP (CGMP Compliance Body) 110V | 1 |
| 5010300 | ELT-201WP (CGMP Model) | 1 |
| Optional Accessories | ||
| Part number | Description | Quantity |
| 5001A00022 | 12 mm Round Plexiglass Plate for 250 mm Dia Dessicator | 1 |
| 5001A00023 | 12 mm Round Plexiglass Plate for 300 mm Dia Dessicator | 1 |
| 5001A00009 | Vacuum desiccators of 300 mm dia | 1 |
| 5001A00008 | Vacuum desiccators of 250 mm dia | 1 |
| 5001A00014 | Vacuum Chamber: 300 mm dia x 450 mm Height | 1 |
| 5001A00016 | Vacuum Chamber: 400 mm dia x 290 mm Height | 1 |
| 5001A00017 | Vacuum Chamber: 400 mm dia x 450 mm Height | 1 |
| 5001A00013 | Vacuum chamber: 300 mm dia x 290 mm height | 1 |
| 5001A00021 | Vacuum Chamber: 300 mm Dia x 145 mm Height | 1 |
| 5001A00018 | Vacuum Chamber: 400 mm dia x 500 mm Height | 1 |
| 5001A00015 | Vacuum Chamber: 300 mm dia x 500 mm Height | 1 |
| 0201A00020 | 30 Column serial printer | 1 |
| 0104A00785 | connexion+ | 1 |
| 1544006 | Sentin Ai (2-Port) | 1 |
| 1544004 | Sentin Ai (2-Port) Machine Learning | 1 |
| 1544003 | Sentin Ai (2-Port) Machine Learning Advance | 1 |
| 1544007 | Sentin Ai (4-Port) | 1 |
| 1544005 | Sentin Ai (4-Port) Machine Learning | 1 |
| 1544002 | Sentin Ai (4-Port) Machine Learning Advance | 1 |
