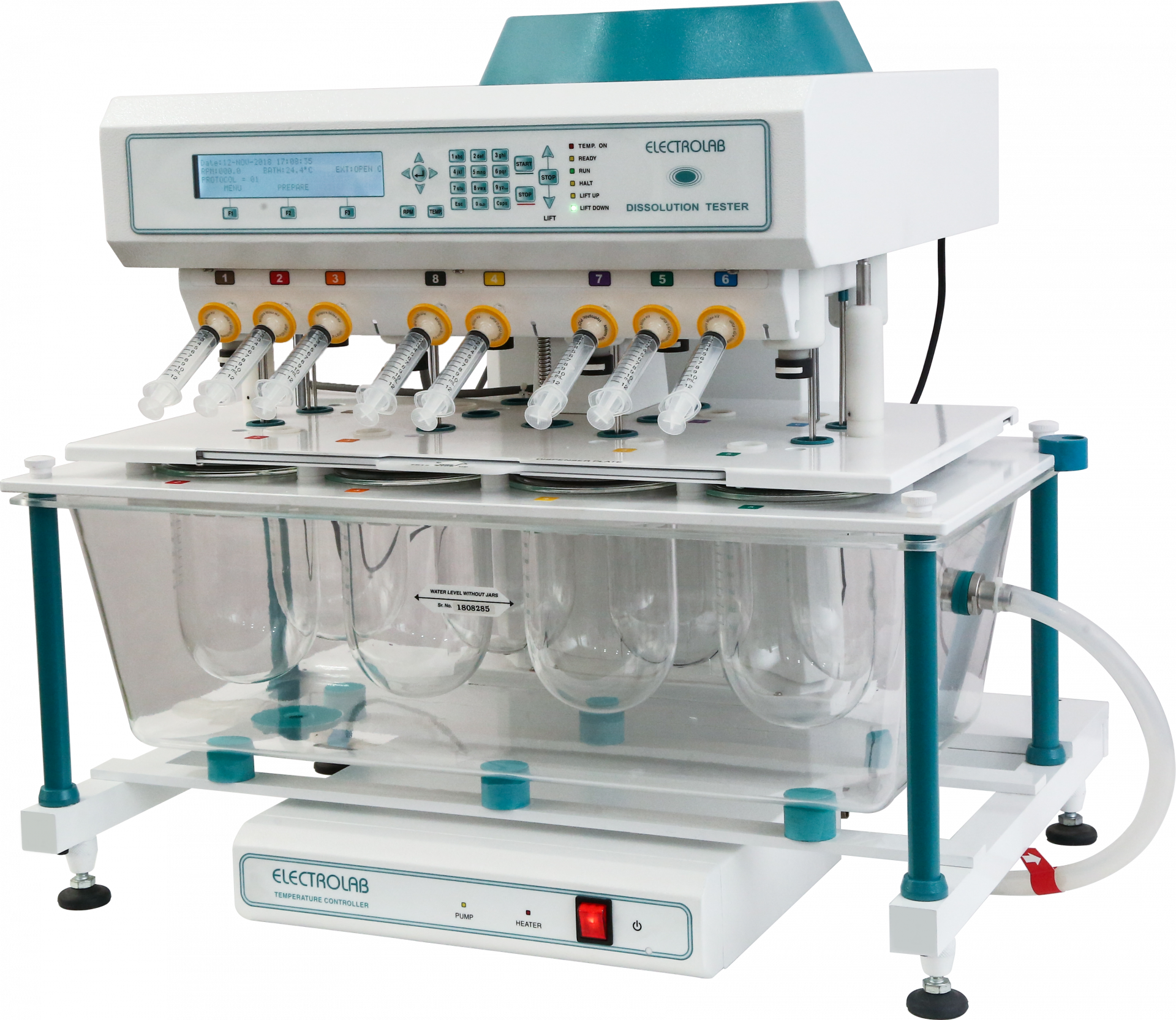

Inspire 8 Manual Syringe Sampling
Features
station
Infinity Test
Isolated Temperature Controller
Motorized Lift Mechanism
Quality by Design
Multi-Level Security
Multi-stage Filtration
Report
Rinsing
Sample Collector Tray
Savings
Snap-Fit Shaft
| LCD display of 40 characters and 4 lines for user friendly operation |
| Multilevel security with password |
| Alphanumeric data entry of product and user details |
| Unique TimeAction™ function which allows media changeover and infinity test run, ideal for sustained and controlled release products |
| Complies with USP, IP, Ph. Eur. and JP specifications |
| Automatic stirrer height positioning for USP 1, 2, 5, 6, intrinsic test methods |
| Easy Snap-Fit shaft locking mechanism for positive engagement and wobble free operation |
| Clear water bath with metal top-plate |
| Precise individual vessel centering system |
| Adjustable leveling of instrument |
| Vibration free smooth motorized lift movement |
| Isolated water circulating pump for precise temperature control of the water bath |
| 20 programmable protocols |
| 16 programmable sampling intervals |
| Easy to empty and clean water bath with bottom drainage |
| Designed to minimize routine validation |
| Report for online validation of test, monograph, error log during the test |
| Programmable wake-up for temperature control |
| Programmable sample volume from 1 ml to 99 ml |
| Audio-visual indicators for system status |
| Power failure detection facility |
Specifications
| Model | Inspire-08 |
| Speed range | Variable speed from 20 to 300 RPM |
| Speed accuracy | ±1 RPM |
| Temperature range | 20◦C to 40◦C |
| Temperature accuracy | ±0.1◦ C |
| Display | 40 x 4 character backlighted LCD |
| No. of protocols | 20 maximum |
| Sample interval | Maximum 16 of 1 min to 23 hrs, 59 min |
| Printer interface | Serial port |
| Printer supported | 80 column Dot Matrix printer |
| Bath size (L x W x H): | 705 x 374 x 200 mm |
| Heater | 1 kW/230 VAC, material S.S. 304 with sensor |
| Pump supply | 230 VAC, 50 Hz |
| Pump type | Magnetic coupling |
| Pump flow rate | 10 litres/minute maximum |
| Power supply | 220/ 230 VAC, 50/60 Hz, 1.3 kW/6 Amp |
| Dimensions (L x W x H) | 705 x 505 x 645 mm |
Ordering Information
| Products | ||
| Product Code | Description | Quantity |
| 0129104 | Inspire-08 with Manual Syringe Sampling -230V | 1 |
| 0119104 | Inspire-08 with Manual Syringe Sampling -110V | 1 |
| Standard Accessories | ||
| Part number | Description | Quantity |
| 0104A00075 | EDT laser marked basket - 40 mesh (Set of 6) | 1 |
| 0104A00066 | EDT basket rod | 6 |
| 0104A00069 | EDT Basket Holder with 'O' Ring (Set of 6) | 1 |
| 0104A00152 | EDT moulded tray For basket, basket holder & rod | 1 |
| 0104A00091 | EDT laser marked paddles for 1000ml glass vessel (Set of 6) | 1 |
| 0104A00610 | Stirrer for replenishment and blank vessels | 2 |
| 0104A00093 | EDT moulded tray for paddles | 1 |
| 0104A00041 | EDT moulded jar lid - plastic (Set of 6) | 1 |
| 0104A00242 | EDT merlon vessel -1000ml clear (N) | 8 |
| 0104A00018 | EDT V-1234 external probe | 1 |
| 0104BV4114 | EDT- Lx V-4 Temperature Controller ETC-15 | 1 |
| Manual Syringe Sampling Accessories | ||
| Part number | Description | Quantity |
| 0105A00277 | Motorised sampling manifold | 1 |
| 0105A00322 | Ptfe carrier tubing(with connector for manifold syringe pump and sample collector) | 6 |
| 0104A00323 | Syringe filter manifold (6 disposable syringe filters can be inserted) | 1 |
| 0134B00001 | Individual vessel temperature sensors with cable and connector | 6 |
| Optional Accessories | ||
| Part number | Description | Quantity |
| 0104A00477 | EDT ClearView™(230V) Version 2.1 | 1 |
| 0104A00398 | EDT glass vessel 1000ml - clear with sigma delta certification | 1 |
| 0104A00401 | EDT laser marked glass vessel 1000ml - amber with sigma delta certification | 1 |
| 0104A00259 | EDT merlon vessel 1000ml amber (N) | 1 |
| 0172ASC001 | ESC Dx glass tubes 20ml - Clear | 1 |
| 0172ASC002 | ESC Dx glass tubes 20ml - Amber | 1 |
