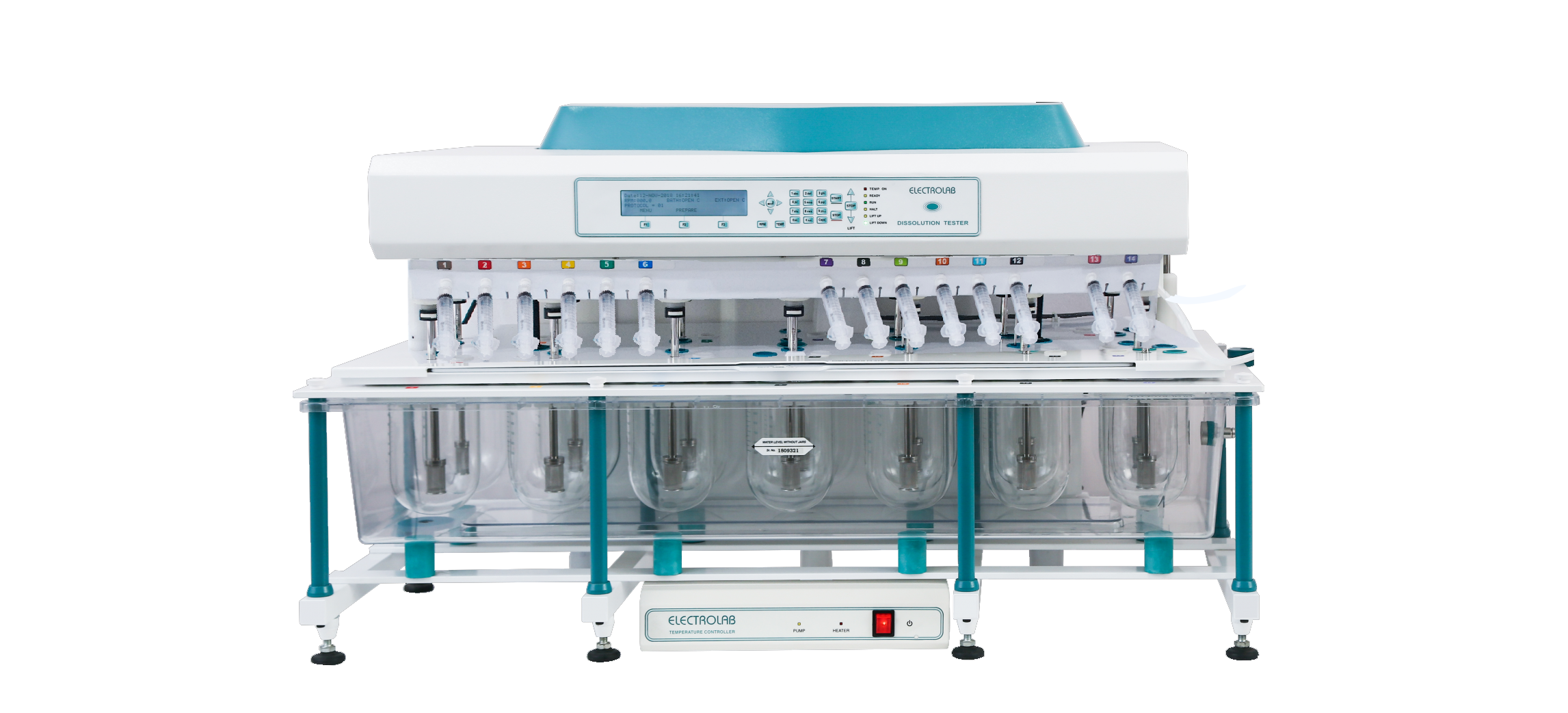

Inspire 14 Manual Syringe Sampling
Features
station
Infinity Test
Isolated Temperature Controller
Motorized Lift Mechanism
Quality by Design
Multi-Level Security
Multi-stage Filtration
Report
Savings
Snap-Fit Shaft
| LCD display of 40 characters and 4 lines for user friendly operation |
| Multilevel security with password |
| Alphanumeric data entry of product and user details |
| Unique TimeAction™ function which allows media changeover and ifinity test run, ideal for sustained and controlled release products |
| Complies with USP, IP, Ph. Eur. and JP specifications |
| Automatic stirrer height positioning for USP 1, 2, 5, 6,intrinsic test methods TM |
| Easy Snap-FitTM shaft locking mechanism for positive engagement and wobble free operation |
| Clear water bath with metal top-plate |
| Precise individual vessel centering system |
| Adjustable leveling of instrument |
| Vibration free smooth motorized lift movement |
| Isolated water circulating pump for precise temperature control of the water bath |
| 20 programmable protocols |
| Make sure when syringe system connected it's 16 and stand alone 24 |
| Easy to empty and clean water bath with bottom drainage |
| Designed to minimize routine validation |
| Report for online validation of test, protocol, error log during the test |
| Programmable wake-up for temperature control |
| Programmable wake-up for temperature control |
| Audio-visual indicators for system status |
| Power failure detection facility |
| Individual temperature probe for monitoring temperature of each vessel |
Specifications
| Model | Inspire-14 Manual Syringe Sampling |
| Speed range | Variable speed from 20 to 300 RPM |
| Speed accuracy | ±1 RPM |
| Temperature range | 20◦C to 40◦C |
| Temperature accuracy | ±0.1◦ C |
| Display | 40 × 4 character backlighted LCD |
| No. of protocols | 20 maximum |
| Sample interval | Maximum 24 of 1 min to 23 hrs, 59 min |
| Printer interface | Serial port |
| Printer supported | 80 column Dot Matrix printer |
| Bath | Clear molded water bath |
| Dimensions (WxLxH) | 521 x 1150 x 663 mm |
| Heater | 1 kW/230 VAC, material 5.5. 304 with sensor |
| Vessel capacity | 150 ml, 250 ml, 500ml 1L |
| Electrical power | 220/230 VAC, 50/60 Hz, 1.3 kW/6 Amp 110 VAC, 50/60 Hz,1.3 kW/10 Amp |
| Weight | 95 KG |
Ordering Information
| Products | ||
| Product Code | Description | Quantity |
| 0129204 | Inspire-14 with Manual Syringe Sampling -230V | 1 |
| 0119204 | Inspire-14 with Manual Syringe Sampling -110V | 1 |
| Standard Accessories | ||
| Part number | Description | Quantity |
| 0104A00075 | EDT laser marked basket - 40 mesh (Set of 6) | 2 |
| 0104A00066 | EDT basket rod | 12 |
| 0104A00068 | DT Basket Holder with clip (Set of 6) | 2 |
| 0104A00152 | EDT moulded tray For basket, basket holder & rod | 2 |
| 0104A00091 | EDT laser marked paddles for 1000ml glass vessel (Set of 6) | 2 |
| 0104A00610 | Stirrer for replenishment and blank vessels | 2 |
| 0104A00093 | EDT moulded tray for paddles | 2 |
| 0104A00041 | EDT moulded jar lid - plastic (Set of 6) | 2 |
| 0104A00242 | EDT merlon vessel -1000ml clear (N) | 14 |
| 0104A00018 | EDT V-1234 external probe | 1 |
| 0104BV4114 | EDT- Lx V-4 Temperature Controller ETC-15 | 1 |
| Optional Accessories | ||
| Part number | Description | Quantity |
| 0104A00477 | EDT ClearView™(230V) Version 2.1 | 1 |
| 0104A00398 | EDT glass vessel 1000ml - clear with sigma delta certification | 1 |
| 0104A00401 | EDT laser marked glass vessel 1000ml - amber with sigma delta certification | 1 |
| 0104A00259 | EDT merlon vessel 1000ml amber (N) | 1 |
| 0172ASC001 | ESC Dx glass tubes 20ml - Clear | 1 |
| 0172ASC002 | ESC Dx glass tubes 20ml - Amber | 1 |
