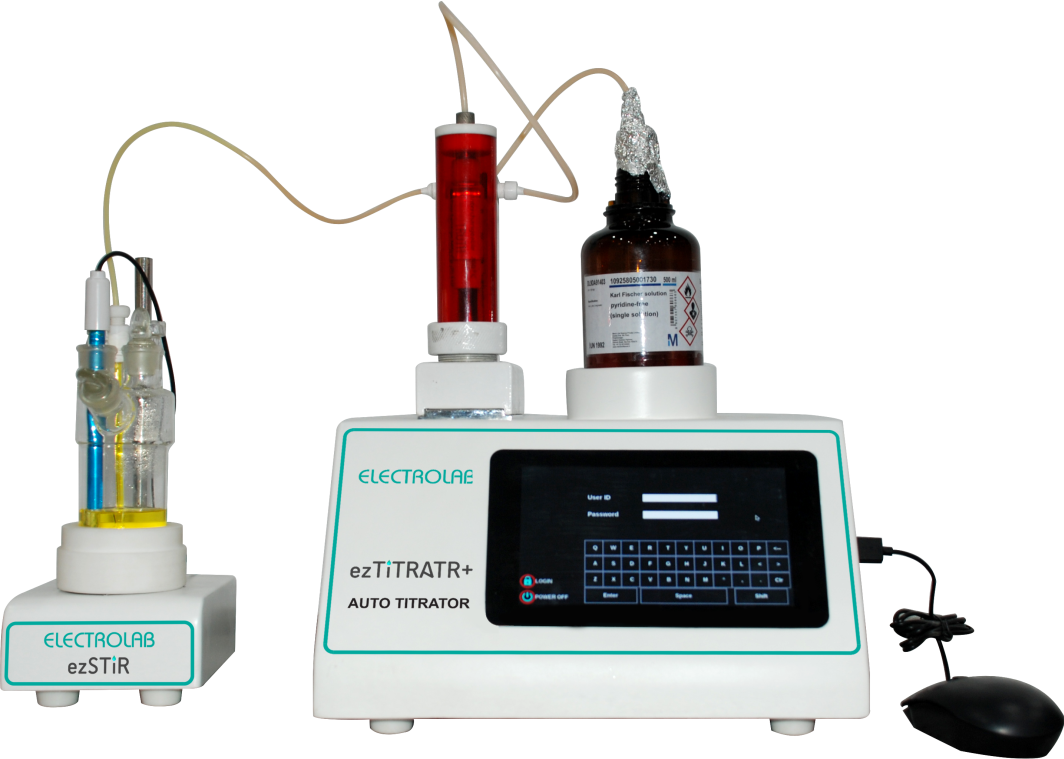

Titrator
ezTiTRATR
Features
| Ideal to perform aqueous, non-aqueous, complexo metric, redox titrations |
| 21 CFR compliant software- ezIntegrity |
| Burette recognition facility |
| Accurate and Efficient burette dosing assembly |
| Touch screen with intuitive GUI |
| Large storage capacity |
| Customizable formulas with user defined units |
Specifications
| Model | ezTiTRATR |
| mV range | +2500 mV |
| Accuracy | ± 0.01 mV |
| Input Impedance | 1012 Ω |
| Burette capacity | 20 mL |
| Burette resolution | 1 μL |
| Filling time | ≤30 secs |
| Sensors | 1. Potentionetric (ph ,Redox, Aqueous, Nonaqueous, Complexometric, Argentometric, ISE) 2. Temperature sensor electrode |
| Stirrer | Separate stirrer with touchscreen based speed control |
| Titration modes | Blank, Sample, Normality |
| Cut-off Criteria | Volume, Endopint, mV |
| Endpoint detection | Potentiometric , voltametric |
| Display | 7 inch capacitive touchscreen |
| Storage | 1000 Reports & Methods |
| Reports | Analysis (Parameters, Results) and Statistics Reports (RSD, Linearity , Average |
| Technology | ARM Cortex SOC with MIPS |
| Communication Interface | ezIntegrity (21 CFR part 11 compliant software), Ethernet/wifi (PC connectivity) Ethernet/USB (Printer) USB (Report transfer to external drive) |
| Power | Single phase- 230 V AC 50 Hz |
| Product Dimensions L x W x H (cm) : | 37 x 30 x 15.5 (cm) |
Ordering Information
| Products | ||
| Product Code | Description | Quantity |
| 5720100 | ezTiTRATR -230V | 1 |
| 5710100 | ezTiTRATR -110/100V | 1 |
| Standard Accessories | ||
| Part number | Description | Quantity |
| 0101A00001 | Magnetic Stirrer module : stirrer box | 1 |
| 0101A00002 | Magnetic paddle | 1 |
| 0101A00003 | Teflon cap | 1 |
| 0101A00004 | Teflon adapter | 1 |
| 0101A00005 | Resistance Temperature Detector (RTD) (PT-100 Glass tube | 1 |
| 0101A00008 | Interchangeable Burette -Valve module | 1 |
| 0101A00009 | Glass Vessel (Beaker: 4nos., Reservoir Bottle500ml-1no.) | 1 |
| Optional Accessories | ||
| Part number | Description | Quantity |
| 0101A00010 | pH Combination Electrode (Aqueous ) | 1 |
| 0101A00011 | pH Combination Electrode (Non -Aqueous ) | 1 |
| 0101A00012 | Redox Titration Electrode | 1 |
| 0101A00013 | AgNO3 Argentometric Titration | 1 |
