Leak Tester

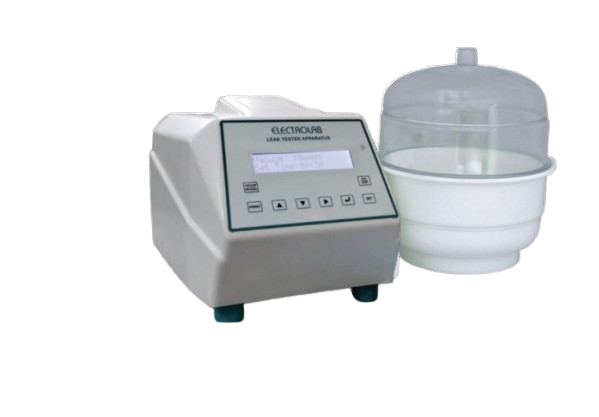

Leak Tester ELT-101
Features
| Smart verification of leak detection using the widely accepted and cost efficient blue dye method |
| Programmable vacuum level and hold time |
| Oil-less vacuum pump |
| CGMP model |
| Compliance with USP and international package practice specifications |
| Slow venting for better precision |
| Printout of test report via serial port |
| Vacuum calibration made easy with inbuilt calibration menu |
| Fully micro controller based equipment (First time in India) |
| Large LCD module for displaying vacuum and an electronic countdown time |
| Built in with a rugged oil free vacuum pump |
| Vacuum display and timer of the LCD module is factory calibrated |
| User-friendly equipment with easy controls |
| Fully transparent Polycarbonate Vacuum Desiccator |
| Portable, Efficient, Low power consumption |
| Software calibration of vacuum |
| Release time 60sec or 80 sec |
Specifications
| Model | ELT-101 |
| Vacuum level range | Better than 600 mm Hg at MSL |
| Timer range | Up to 99 minutes |
| Printer interface | Serial |
| Vacuum setting level | Vacuum can stabilize for a set value from a.Less than 400mm of Hg ± 10 mm of Hg within 30 sec. b.Above 400 mm of Hg ± 5 mm of Hg within 30 sec. |
| Vacuum sensor accuracy | ±2 mm Hg over full scale |
| Dimensions (W x L x H) | 248 mm x 377 mm x 248 mm |
| Electrical power | 220/230 VAC, 50/60 Hz, 1.3 kW/6 Amp 110 VAC, 50/60 Hz, 1.3 kW/10 Amp |
| Weight | 10 Kg |
Ordering Information
| Products | ||
| Product code | Description | Quantity |
| 5030600 | Leak Tester Model ELT-101 (230V) | 1 |
| 5040600 | Leak Tester Model ELT-101 (110V) | 1 |
| Optional Accessories | ||
|---|---|---|
| Part number | Description | Quantity |
| 5001A00022 | 12 mm Round Plexiglass Plate for 250 mm Dia Dessicator | 1 |
| 5001A00023 | 12 mm Round Plexiglass Plate for 300 mm Dia Dessicator | 1 |
| 5001A00009 | Vacuum desiccators of 250 mm dia | 1 |
| 5001A00008 | Vacuum desiccators of 300 mm dia | 1 |
| 5001A00014 | Vacuum Chamber: 300 mm dia x 450 mm Height | 1 |
| 5001A00016 | Vacuum Chamber: 400 mm dia x 290 mm Height | 1 |
| 5001A00017 | Vacuum Chamber: 400 mm dia x 450 mm Height | 1 |
| 5001A00013 | Vacuum chamber: 300 mm dia x 290 mm height | 1 |
| 5001A00021 | Vacuum Chamber: 300 mm Dia x 145 mm Height | 1 |
| 5001A00018 | Vacuum Chamber: 400 mm dia x 500 mm Height | 1 |
| 5001A00015 | Vacuum Chamber: 300 mm dia x 500 mm Height | 1 |
| 0201A00020 | 80 Column serial printer | 1 |
| 0104A00785 | connexion+ | 1 |
