Disintegration Tester

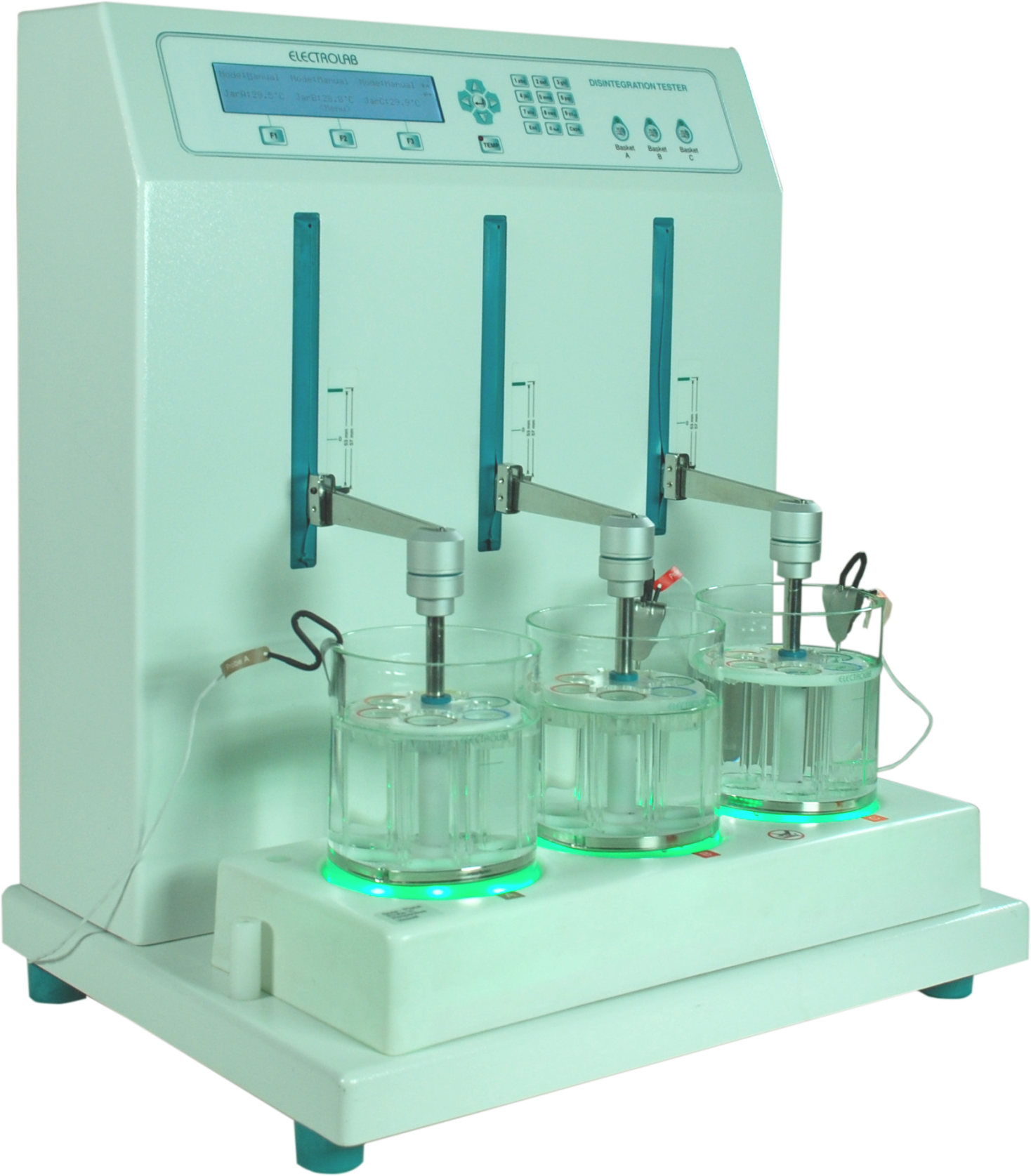

Disintegration Tester EDI-3X
Features
3 Station
Maintenance free
Park out
report print
Snap-click and Swivel free
USP,Ph.Eur,IP compliant
Single Test
Security
| Complies with USP, IP, Ph. Eur. Specifications |
| Bathless heating (saves water, time, electricity) |
| Bathless disintegration tester is maintenance-free |
| Specially designed efficient heater plates for vessel, heats media quickly |
| Basket park-out from beaker |
| Unique camless drive |
| Print report of test results and validation |
| Individual motor and timer with external probe for each basket |
| Ergonomically designed and magnetically coupled basket for easy loading |
| Serial port for printing test report |
| programmable temperature range from 15°C to 40°C with auto calibration |
| Bottom illumination for better view of tablets |
| Each basket having individual temperature probe |
| Ergonomically designed basket for quick loading & easy to clean |
| The number of protocols which can be set varies from 1 to 10 |
| Two types of Mode: 1.Auto mode 2. Manual mode |
| Installed with security system |
| 3 motor drives with independent timers |
Specifications
| Model | EDI-3X |
| Beaker | 1000 ml glass beakers (3 nos.) |
| Basket | 3 nos. each carrying 6 test |
| Guided disc | Perforated cylindrical disc 6 |
| Heater | 250 watts, S.S. 304 watts |
| Display | 40 x 4 LCD |
| Power supply | 230 V AC, 50 Hz, 490 VA |
| No. of strokes | 30 +0.5 strokes/min |
| Illumination | Green LED |
| Stroke height | 55 mm ±2 mm |
| Temperature range | 15° C to 40° C |
| Temperature resolution | ±0.2° C |
| Timer setting | 74 hrs 59 min. 59 sec |
| Dimension ( L x H x W) | 490 x 372 x 571mm |
| Weight | 18kg |
Ordering Information
| Products | ||
| Product Code | Description | Quantity |
| 0241600 | EDI-3X (Body made of S.S.) -230V | 1 |
| 0221600 | EDI-3X (Body made of M.S.) -230V | 1 |
| 0211600 | EDI-3X (Body made of S.S.) -110V | 1 |
| 0231600 | EDI-3X (Body made of M.S.) -110V | 1 |
| Accessories | ||
| Part number | Description | Quantity |
| 0216A00002 | EDI-3X six tube basket assembly (Set of 3) | 1 |
| 0213A00001 | EDI glass beaker (1000 mL) | 3 |
| 0213A00002 | External probe | 3 |
| Optional Accessories | ||
| Part number | Description | Quantity |
| 0216A00006 | EDI-3X6 tube basket assembly for isotretinoin soft gel capsules (Set of 3) | 1 |
| 0216A00004 | EDI-3X Single tube bolus basket assembly (Set of 3) | 1 |
| 0216A00003 | EDI-3X Three tube bolus basket assembly (Set of 3) | 1 |
| 0216A00002 | EDI-3X six tube basket assembly (Set of 3) | 1 |
| 0104A00785 | Connexion+ | 1 |
