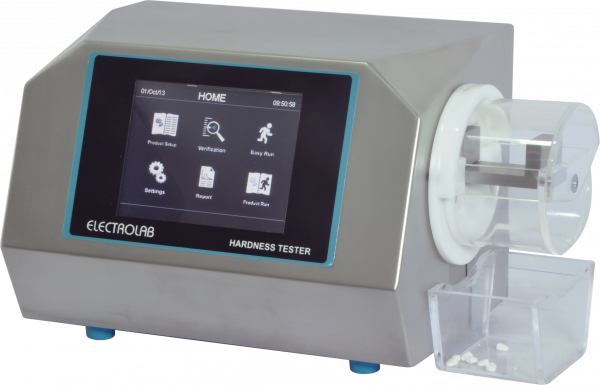

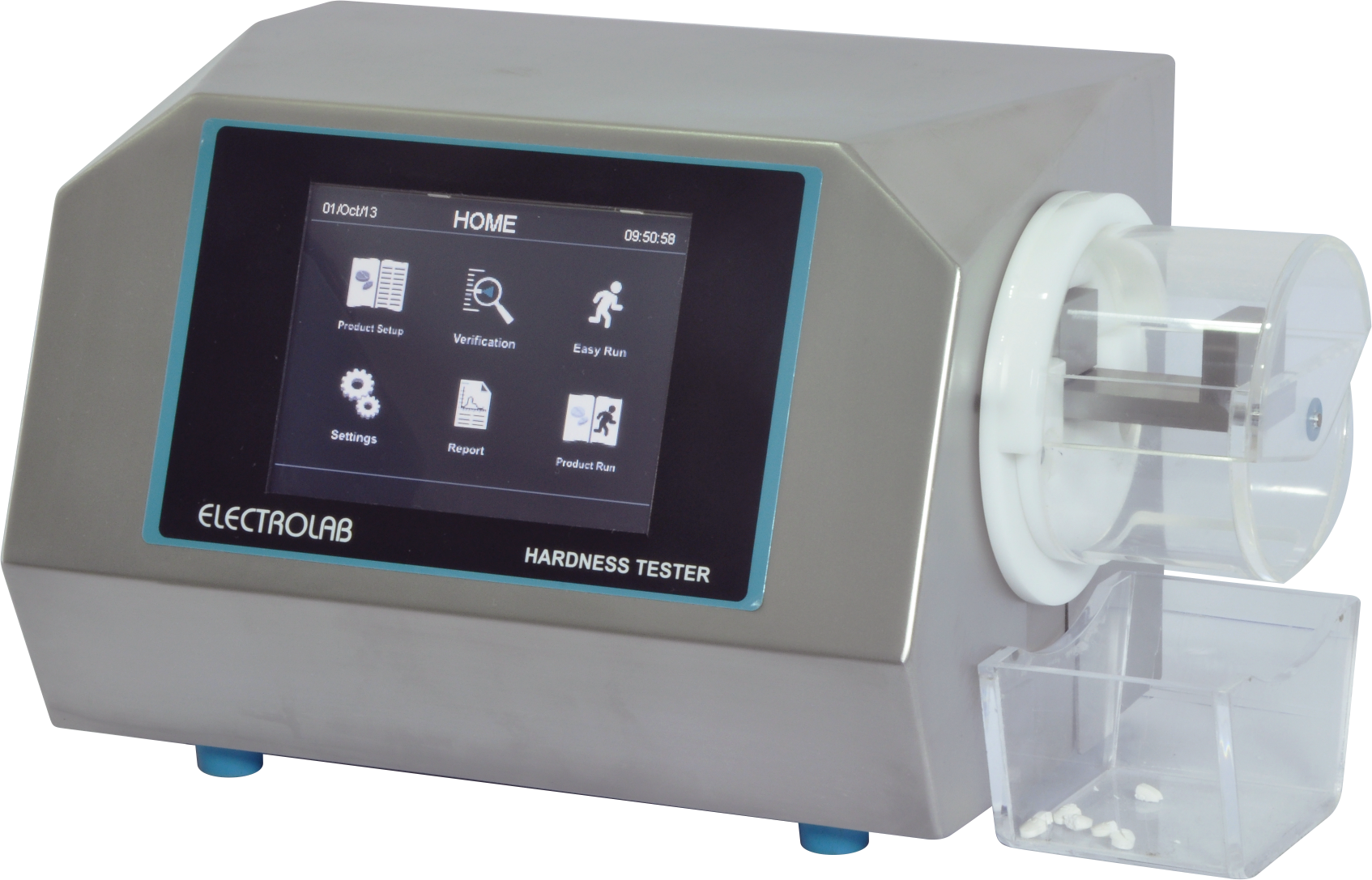

Tablet Hardness Tester
EBT-2PRL
Features
| Measures hardness and thickness |
| Touch screen display |
| Up to 100 samples per test |
| Electronic load-cell |
| Constant speed measuring principle |
| 99 monographs |
| Programmable calibration and verification modes |
| Auto/manual mode with programmable delay time |
| Results, validation and calibration reports can be printed |
| Adjustable break between the sample |
| Printing of data with selectable 100 product setup |
| Ethernet printing |
| Plausibility checking |
Specifications
| Model | EBT-2PL |
| Display | 5.7" intuitive touch screen |
| Accuracy | Better than +/- 1N |
| Max. force | 800N |
| Constant speed | Programmable (1 mm/sec ~ 3 mm/sec) |
| Units | mm / inch |
| Range | 0 - 35 mm |
| Resolution | 0.01 mm |
| Tablet size | max 35 mm |
| Calibration | 2-point calibration |
| Verification | 3-point linearity |
| Printer connectivity | LAN and serial port |
Ordering Information
| Products | ||
| Product Code | Description | Quantity |
| 0940900 | EBT-2PRL with printer (Body made of S.S.) -230V | 1 |
| 0930900 | EBT-2PRL with printer (Body made of S.S.) -110V | 1 |
| Standard Accessories | ||
| Part number | Description | Quantity |
| 0901A00002 | Brush | 1 |
| 0905A00003 | EBT waste tray | 1 |
| 0905A00001 | EBT acrylic hood | 1 |
| Optional Accessories | ||
| Part number | Description | Quantity |
| 0901A00001 | Brass weight 5 Kgs (Calibrated) | 1 |
| 0901A00010 | 10 mm gauge block | 1 |
| 0905A00012 | EBT/EHT magnetic tablet organizer tray | 1 |
