Dissolution Testers – USP 1/2/5/6
Basic

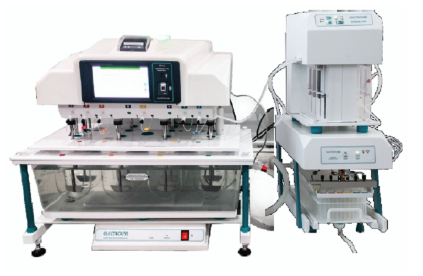

Trust E 8 GEN 2 with dc sample collector
Features
Infinity Test
Authority checks
Device checks
Accurate and Complete Copies of Records
Multi-Level Security
Electronic Log Book
Audit Trail
Report
Metadata Storage
LAN
Touch screen
Fingerprint Authentication
| 7" TFT touch screen display |
| LAN connectivity allows central printing |
| Multilevel security with password for 250 users with user programmable role |
| Alphanumeric data entry of product and user details |
| Complies with USP, IP, Ph. Eur. and JP specifications |
| Unique TimeAction™ function which allows media changeover and infinity test run, ideal for sustained and controlled release products |
| Automatic stirrer height positioning for USP 1, 2, 5, 6, intrinsic test methods |
| Easy Snap-Fit shaft locking mechanism for positive engagement and wobble free operation |
| Molded clear water bath |
| Easy to empty and clean water bath with bottom drainage |
| Precise individual vessel centering system |
| Adjustable leveling of instrument |
| Vibration free smooth motorized lift movement |
| Isolated temperature controller and water circulating pump (vibration-free & precise) |
| 1000 programmable products |
| 16 programmable sampling intervals |
| 10000 test report storage |
| Instrument accessories like paddles, baskets, vessels etc. are laser marked with serial numbers |
| Designed to minimize routine validation |
| Programmable report template |
| Report for online validation of test, monograph, error log during the test |
| Programmable sample volume from 1 ml to 20 ml |
| Power failure detection and auto resume facility |
| D'light technology enabling audio visual indication of instrument status |
| 250 users |
| Finger print module |
| Audit trail |
| E-signature |
| Auto drop sync |
| Intense rinse |
| Rinse by purge |
| Rinse by loopback |
| Dynamic Dive to lower the sampling cannula to the regulatory |
| complaint depth depending on the aliquots withdrawn |
Specifications
| Model | Trust E 8 GEN 2 manual syringe sampling |
| Speed range | Variable speed from 20 to 300 RPM |
| Speed accuracy | ±0.5 RPM |
| Temperature range | 20⁰ to 40⁰ C (Extended range 10⁰ to 40⁰ C, 10⁰ to 55⁰ C and 20⁰ to 55⁰ C Optional) |
| Temperature accuracy | ± 0.1⁰ C |
| Display | 7" TFT touch screen display |
| No. of Product | 1000 maximum |
| Sample interval | Maximum 24 of 1 min to 999 hrs, 59 min |
| Printer interface | Serial port (via LAN) post script or embedded thermal printer (optional) |
| Connectivity | Ethernet, RS – 232 ,RS-485 USB |
| Heater | 1 kW/230 VAC, material S.S. 304 with sensor |
| Dimensions ( W x L x H) | 521 x 1537 x 663 mm |
| Weight | 126Kg |
| Electric Power | 220/230 VAC, 50/60 Hz, 1.3 kW/6 Amp 110 VAC, 50/60 Hz, 1.3 kW/10 Amp |
| No. of Methods | 1000 Maximum |
| No. of Reports | 50000 Maximum |
| No. of Audit Trial | 200000 Maximum |
| Time Range | 1 min to 999 hrs, 59 min |
[table “216” not found /]
Ordering Information
| Products | ||
| Product Code | Description | Quantity |
| 01414600 | Tablet Dissolution Tester TrustE-14 (Gen-2) Dc Sample collector 230Volts | 1 |
[table “162” not found /]
| Accessories | ||
| Product code | Description | Quantity |
| 0104A00075 | EDT laser marked basket 40 mesh (Set of 6) | 2 |
| 0104A00066 | EDT basket rod | 14 |
| 0104A00818 | Secure Clip Basket Holder | 12 |
| 0104A00152 | EDT molded tray for basket, basket holder & rod | 2 |
| 0104A00091 | EDT Laser Marked Paddles For 1000 Mi Glass Vessel (Set of 6) | 2 |
| 0104A00093 | EDT molded tray for paddles | 2 |
| 0104A00730 | Hexa Vessel 1000ml Clear | 12 |
| 0104A00242 | EDT merion vessel 1000 ml (clear) | 2 |
| 0104BV4155 | EDT V-5 External Probe Without Trim Pot | 2 |
| 0104BV4114 | External Temperature Control Unit (ETC-15) | 1 |
| IntegrOS Lite Version | 1 |
[table “164” not found /]
