Dissolution Testers – USP 1/2/5/6
Basic

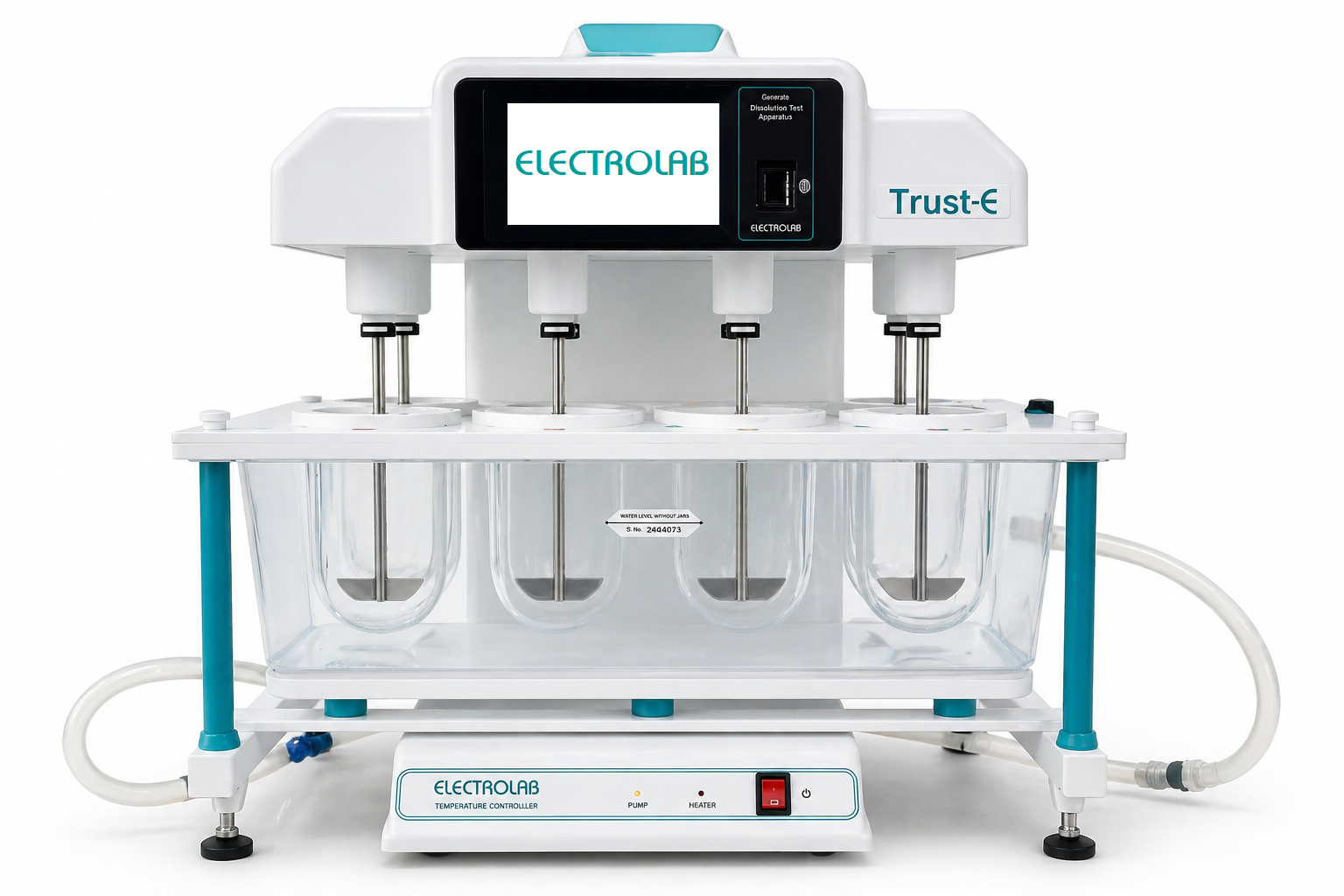

Trust E 8 GEN 2 basic
Features
Infinity Test
Authority checks
Device checks
Accurate and Complete Copies of Records
Multi-Level Security
Electronic Log Book
Audit Trail
Report
Metadata Storage
LAN
Touch screen
Fingerprint Authentication
| 7" TFT touch screen display |
| LAN connectivity allows central printing |
| Multilevel security with password for 250 users with user programmable role |
| Alphanumeric data entry of product and user details |
| Complies with USP, IP, Ph. Eur. and JP specifications |
| Unique TimeAction™ function which allows media |
| changeover and infinity test run, ideal for sustained and controlled release products |
| Automatic stirrer height positioning for USP 1, 2, 5, 6, intrinsic test methods |
| Easy Snap-Fit shaft locking mechanism for positive engagement and wobble free operation Molded clear water bath |
| Easy to empty and clean water bath with bottom drainage Precise individual vessel centering system |
| Adjustable leveling of instrument Vibration free smooth motorized lift movement |
| Isolated temperature controller and water circulating pump (vibration-free & precise) 1000 programmable products 1000 programmable products 24 programmable sampling intervals 50000 test report storage |
| Instrument accessories like paddles, baskets, vessels etc. are laser marked with serial numbers |
| Designed to minimize routine validation 10 Programmable report template |
| Report for Online validation of test, monograph, error log during the test |
| Programmable sample volume from 1 ml to 20 ml Power failure detection and auto resume facility |
| D’light technology enabling audio visual indication of instrument status Data management (back up of Data for individual machine via FTP) |
| machine to machine transfer data for product method and Security via FTP Biometric log in system Disaster management Reports can be saved in the PDF Format via FTP |
| Loop Back Error Detection Tray flexibility with DX Sample collector 1.5 ml/ 10 ml/ 20 ml / combination tray |
| Usage history of machine (stirrer, heater, Total number of tests performed Etc.) |
| Report sorting according to Review By / Approved By/Based on role access View report on Screen Time synchronization based on NTP, |
| Domain Electrolab user Active/ Inactive permission set by Client Audit modification events Old Data/ New Data on field Software upgradation static / DHCP IP Module Programmable |
| Tolerances for Temperature and RPM Compatible with DC and DX Sample Collector Intense Rinse Auto Dilution with stirring Syringe capacity of 10 ml / 25 ml |
Specifications
| Model | TrustE-08 Basic (Gen-2) |
| Speed range | Variable speed from 20 to 300 RPM |
| Speed accuracy | ±0.5 RPM |
| Temperature Range | 20°C to 40°C (Extended range 10°C to 55°C and 20°C to 55°C Optional) |
| Temperature Accuracy | ±0.1°C |
| Display | 7" TFT touch screen display |
| No. of Product | 1000 maximum |
| Sample interval | Maximum 24 of 1 min to 999 hrs, 59 min |
| Printer interface | Serial port (via LAN) post script or embedded thermal printer (optional) |
| Connectivity | Ethernet, RS-232, RS-485 |
| Time Range | 1 min to 999 hrs, 59 min |
| Heater | 1 kw/230 VAC, material S.S. 304 with sensor |
| Dimensions (W x L x H) | 517 x 712 x 690 mm |
| Weight | 90Kg |
| Electric Power | 220/230 VAC, 50/60 Hz, 1.3 kw/6 Amp / 110 VAC, 50/60 Hz, 1.3 kw/10 Amp |
| No. of Methods | 1000 Maximum |
| No. of Reports | 50000 Maximum |
| No. of Audit Trial | 200000 Maximum |
Ordering Information
| Products | ||
| Product code | Description | Quantity |
| 01413400 | Tablet Dissolution Tester TrustE-08 Basic (Gen-2) 230Volts | 1 |
| 01313400 | Tablet Dissolution Tester TrustE-08 Basic (Gen-2) 110Volts | 1 |
