Leak Tester

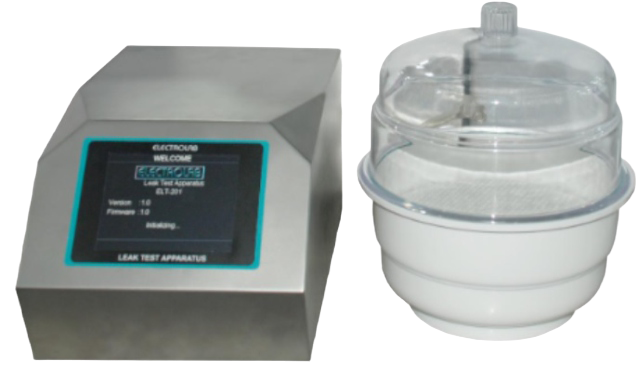

Leak Tester ELT-201
Features
| Meets USP and package specifications |
| Ideal for checking leakage of packed strips, blisters, small sachets and ampoules |
| Programmable vacuum level and hold time |
| Slow venting for better results |
| Validation report printout |
| Oil-less vacuum pump |
| 5.7 inch graphical touch screen display |
| Tolerance range setting to give pass / fail results |
| Programmable 50 methods and storage of 50 product data |
| Ideal for checking leakage of packed strips, blisters, small sachets and ampoules |
Specifications
| Model | ELT-201 |
| Vacuum setting level | Vacuum can stabilize to the set value +5 mm of Hg within 30 secs |
| Vacuum level | 2mm Hg 650 of Hg |
| Timer | Maximum can be set up to 99 minutes Minimum can be set up to 1 min |
| Power requirement | 230V. 50 Hz |
| Power | 300 VA |
| Dimension ( W x L x H) | 377 x 248 x 264 |
Ordering Information
| Products | ||
| Product code | Description | Quantity |
| 5020100 | LT-101P (Body made of S.S.) -230V | 1 |
| 5040100 | LT-101P (Body made of M.S.) -230V | 1 |
| 5030100 | LT-101P (Body made of S.S.) -110V | 1 |
| 5010100 | LT-101P (Body made of M.S.) -110V | 1 |
| Optional Accessories | ||
|---|---|---|
| Part number | Description | Quantity |
| 5001A00008 | Vacuum desiccators of 300 mm dia | 1 |
| 5001A00009 | Vacuum desiccators of 250 mm dia | 1 |
| 5001A00002 | 12 mm round glass plate for 300 mm dia | 1 |
| 5001A00001 | 12 mm round glass plate for 250 mm dia | 1 |
| 0201A00020 | 80 Column serial printer | 1 |
