Tablet Hardness Tester

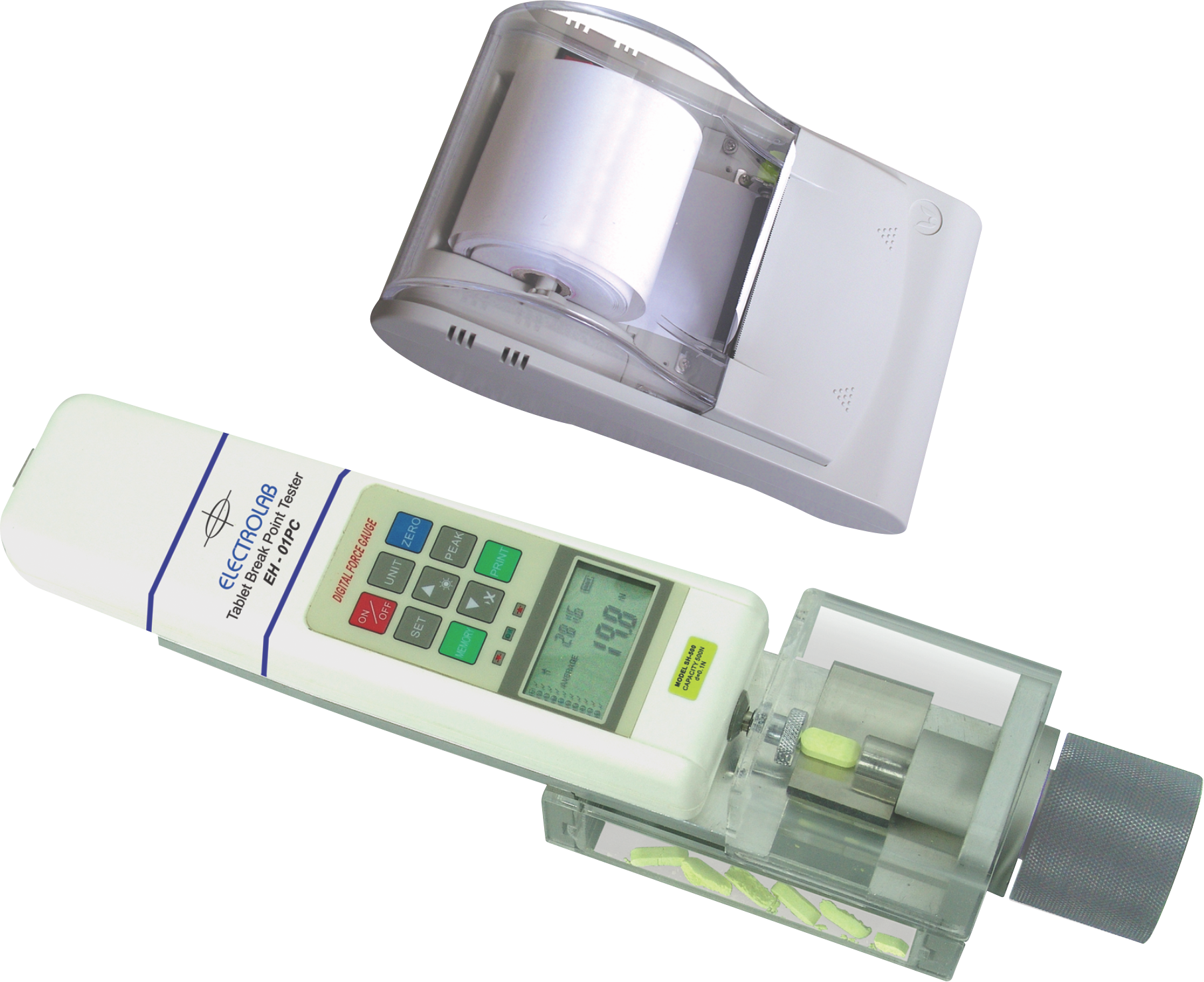

Tablet Hardness Tester EH-01P
Features
| Complies with USP requirements |
| Hardness measurement by load cell upto 500 N |
| Units of measurement in N, Kgf and lbf |
| Printer connectivity through RS 232 port |
| Programmable upper (T1) and lower (T2) tolerance limits |
| Display and print-out of 10 test value and calculate the average of the memorized value |
| Tester operates on rechargeable battery |
| Easy for validation |
Specifications
| Model | EH-01P |
| Min load | 0.1 N |
| Accuracy | +0.5% full scale |
| Tablet size | 2 mm to 28 mm (length/diameter) |
| Power | Ni-Hi 8.4V, 1200mA |
| Dimensions (L x W x H) | 355 x 91 x 76 mm |
| Weight | Net : 1.5 kgs Gross : 2.4 kgs |
Ordering Information
| Products | ||
| Product Code | Description | Quantity |
| 0940200 | EH-01P (Body made of S.S.) -230V | 1 |
| 0930200 | EH-01P (Body made of S.S.) -110V | 1 |
| Standard Accessories | ||
| Part number | Description | Quantity |
| 0901A00002 | Brush | 1 |
| 0901A00004 | Hook | 1 |
| Optional Accessories | ||
| Part number | Description | Quantity |
| 0902A00005 | Thermal printer | 1 |
0905A00013 | 5 kg calibrated weight for validation | 1 |
