Basic

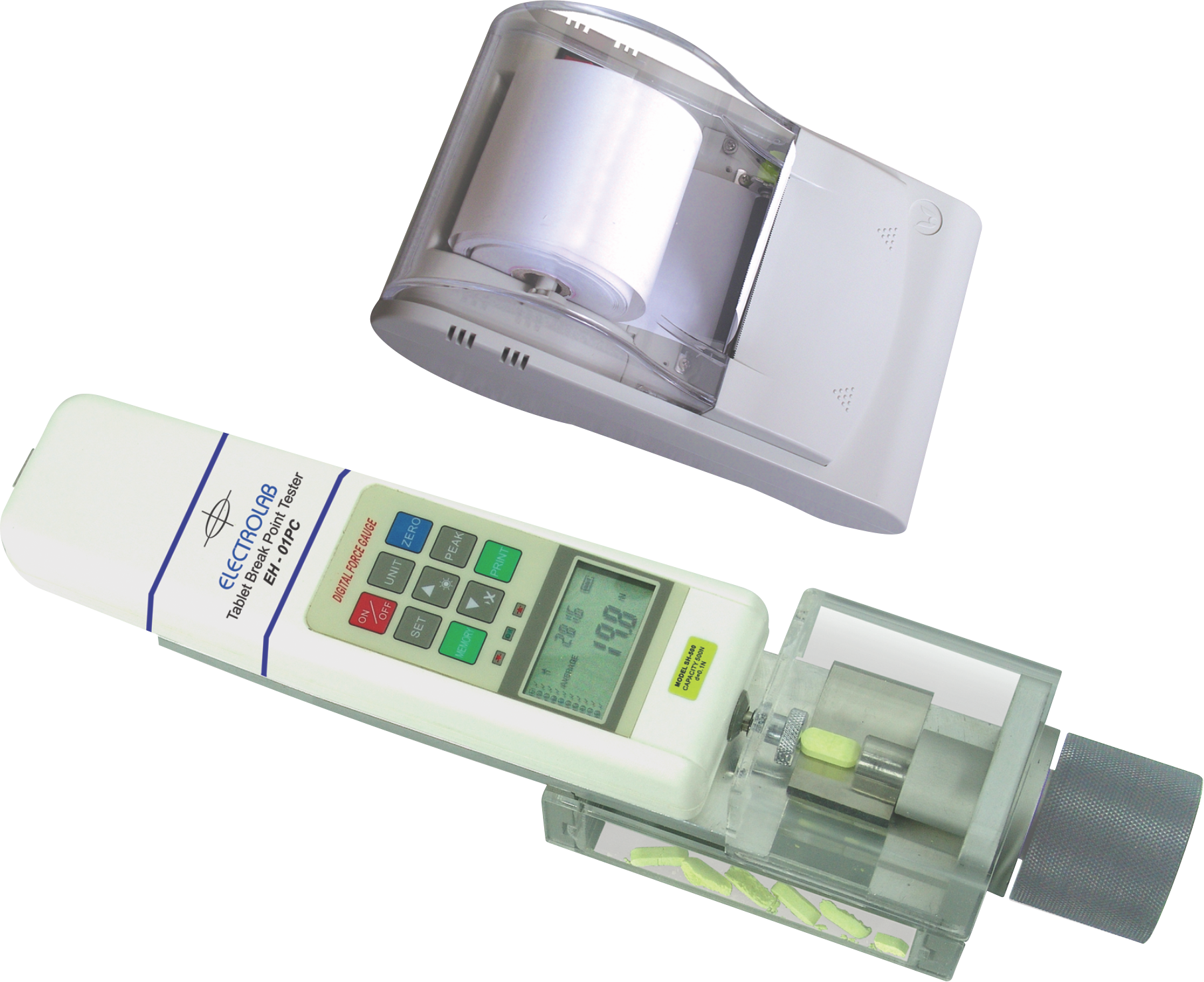

EH-01P

Features
Complies with USP requirements
Hardness measurement by load cell upto 500 N
Units of measurement in N, Kgf and lbf
Printer connectivity through RS 232 port
Programmable upper (T1) and lower (T2) tolerance limits
Display and print-out of 10 test value and calculate the average of the memorized value
Tester operates on rechargeable battery
Easy for validation
Specifications
Model
EH-01P
Min load
0.1 N
Accuracy+0.5% full scale
Tablet size
2 mm to 28 mm (length/diameter)
PowerNi-Hi 8.4V, 1200mA
Dimensions (L x W x H)
355 x 91 x 76 mm
Weight

Net : 1.5 kgs
Gross : 2.4 kgs
Ordering Information
Products
Product CodeDescriptionQuantity
0940200EH-01P (Body made of S.S.) -230V1
0930200EH-01P (Body made of S.S.) -110V
1
Standard Accessories
Part number
DescriptionQuantity
0901A00002Brush1
0901A00004Hook
1
Optional Accessories
Part number
DescriptionQuantity
0902A00005Thermal printer1

0905A00013

5 kg calibrated weight for validation
1
